Product Details:
|
Marketing Type:: | Factory | Place Of Origin:: | Tianjing, China |
---|---|---|---|
Brand Name:: | Jin Yiyuan | After-sales Service Provided:: | 24 Hours After Sale |
Applicable Industries:: | Basic Engineering Drilling | Product Name:: | CFA Long Spiral |
Packing:: | Can Provide Film, Wooden Box, Iron Frame Support | Warranty Period:: | One Year |
Specification: | 300mm~1000mm | Material:: | Q345B |
High Light: | 400mm Diameter Hydraulic Auger Bits,Q345B Hydraulic Auger Bits,400mm Diameter extra long auger bit |

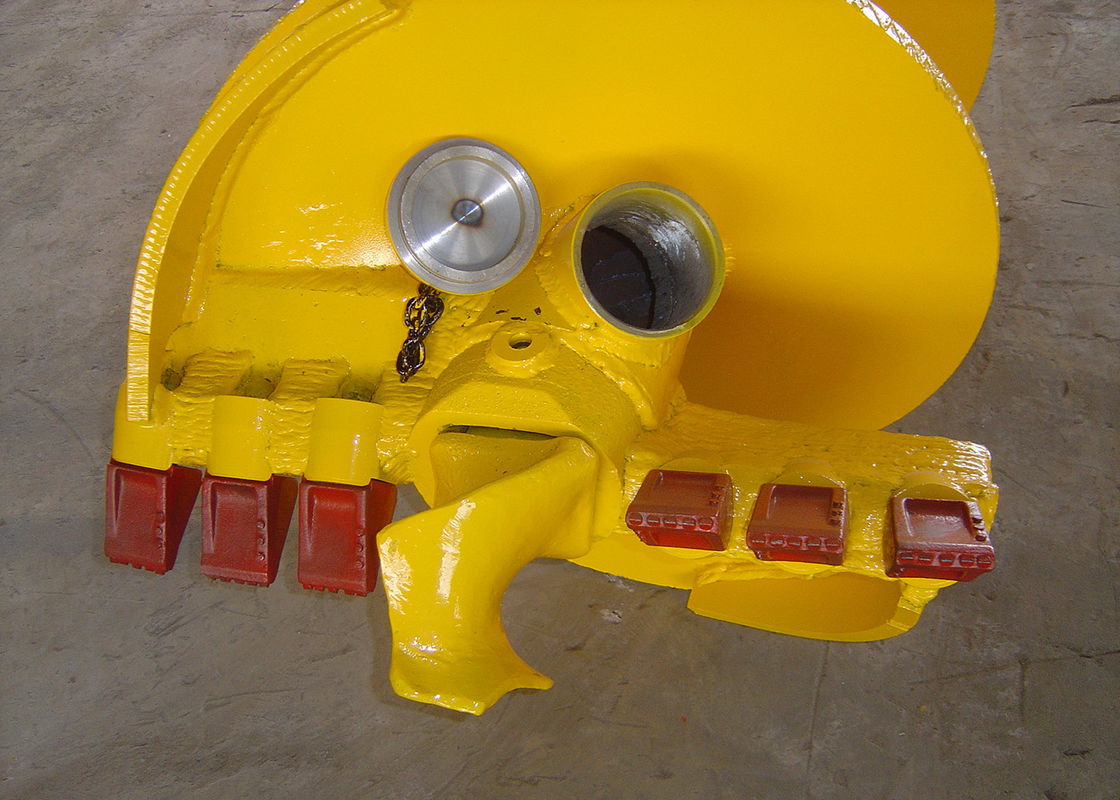

Heavy Duty Rock Augers Hydraulic Auger Bits
Customizable Items
♦Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.
♦Spiral HIT. Custom : design as demand, prolong or shortten, increase of efficiency by drilling more.
♦Spiral Pitch Custom : adjust the spiral pitch according to different working condition;
Feature :
Location by pilot, conical structure drilling into the rock;
Double cutter bearing uniform force, can avoid inclined hole ;
Double spiral easy to carry soil, but meet cohensive soil, single spiral is easy to dump spoil;
Use:
Widely apply to electric power, forestry, telecommunication municipal works, high-speed railway.
1. Parameter | ||||
Product Name | CFA Continuous Flight Auger | |||
Material | Q345B | |||
Technique | Forming, machining, heat treatment, welding | |||
Coupling | Internal and external hexagonal joint | |||
Diameter | 300mm~1000mm | |||
Depth | 18m~21m | |||
Model | Diameter (mm) | Flight Pitch (mm) | Flight Thickness (mm) | Length (m) |
CFA300 | 300 | 250 | 16 | 2~6 |
CFA400 | 400 | 340 | 16 | 2~6 |
CFA500 | 500 | 400 | 16 | 2~6 |
CFA600 | 600 | 500 | 20 | 2~6 |
CFA700 | 700 | 500 | 20 | 2~6 |
CFA800 | 800 | 500 | 20 | 2~6 |
CFA900 | 900 | 500 | 20 | 2~6 |
CFA1000 | 1000 | 500 | 20 | 2~6 |
Customize: | ||||
1. Diameter: 300~1060mm | ||||
2. Depth: 16~25m | ||||
3. Flight thickness: 16~25mm | ||||
4. Coupling: Internal and external hexagonal joint or flange |
