Product Details:
|
| Marketing Type:: | Factory | Place Of Origin:: | Tianjing, China |
|---|---|---|---|
| Packing:: | Can Provide Film, Wooden Box, Iron Frame Support | Applicable Industries:: | Basic Engineering Drilling |
| Product Name:: | CFA Long Spiral | Material:: | Q345B |
| Brand Name:: | Jin Yiyuan | Warranty Period:: | One Year |
| After-sales Service Provided:: | 24 Hours After Sale | Specification: | 300mm～1000mm |
| High Light: | 340mm Flight Pitch Long Auger Bit,2m Long Auger Bit,2m extra long auger drill bits |
||
Post Auger Bit Spiral Auger Drill Bit Long Auger Drill Bit
Product Advantage
Auger drill is suitable for all types of excavators, skid steer loader, backhoe loader, crane, telescopic handler.
Description:
Widely apply to electric power, forestry, telecommunication municipal works, high-speed railway.
Use:
Applicable to a variety of soil, such as frozen soil, pure soil, soft soil, clay, sand, wind fossils, as well as gravel, pebbles and so on.
| 1. Parameter | ||||
| Product Name | CFA Continuous Flight Auger | |||
| Material | Q345B | |||
| Technique | Forming, machining, heat treatment, welding | |||

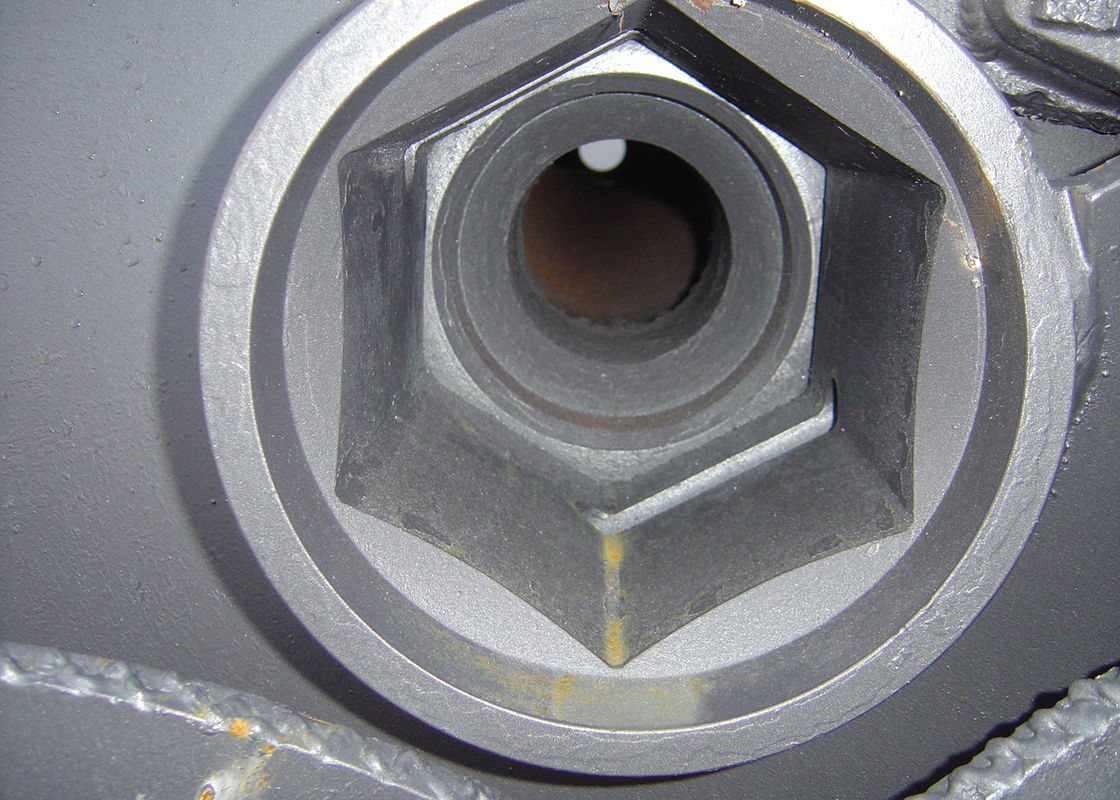

| Coupling | Internal and external hexagonal joint | |||
| Diameter | 300mm～1000mm | |||
| Depth | 18m～21m | |||
| Model | Diameter (mm) | Flight Pitch (mm) | Flight Thickness (mm) | Length (m) |
| CFA300 | 300 | 250 | 16 | 2～6 |
| CFA400 | 400 | 340 | 16 | 2～6 |
| CFA500 | 500 | 400 | 16 | 2～6 |
| CFA600 | 600 | 500 | 20 | 2～6 |
| CFA700 | 700 | 500 | 20 | 2～6 |
| CFA800 | 800 | 500 | 20 | 2～6 |
| CFA900 | 900 | 500 | 20 | 2～6 |
| CFA1000 | 1000 | 500 | 20 | 2～6 |
| Customize: | ||||
| 1. Diameter: 300～1060mm | ||||
| 2. Depth: 16～25m | ||||
| 3. Flight thickness: 16~25mm | ||||
|
4. Coupling: Internal and external hexagonal joint or flange |
||||
