Product Details:
|
| Marketing Type:: | Factory | Place Of Origin:: | Tianjing, China |
|---|---|---|---|
| Packing:: | Can Provide Film, Wooden Box, Iron Frame Support | Applicable Industries:: | Basic Engineering Drilling |
| Product Name:: | CFA Long Spiral | Material:: | Q345B |
| Brand Name:: | Jin Yiyuan | Warranty Period:: | One Year |
| After-sales Service Provided:: | 24 Hours After Sale | Specification: | 300mm～1000mm |
| High Light: | 18m depth Long Auger Drill Bit,CFA Long Auger Drill Bit,18m depth Hydraulic Auger Bits |
||

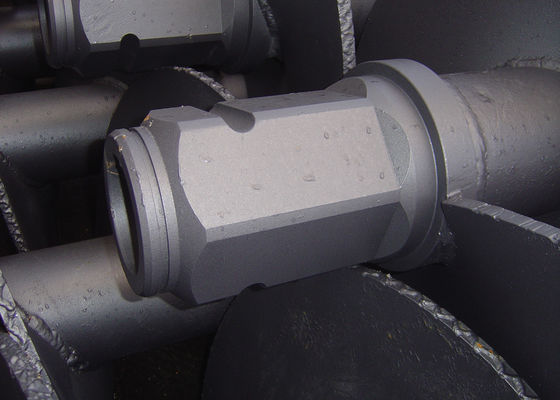

Spiral Auger Drill Bit Long Auger Drill Bit
Product Advantage
- Very dense sand and gravel weak rock, upto 20Mpa;
- Double cut is recommended for uncased bores or bigger diameters and for secant pile wall
Description:
Sturdy and wearable rock pilot for accurate positioning.
Hard facing strips on flights for wear protection.
Use:
Single Cut Auger are suitable for drilling in medium to strong rock (15-60 Mpa). double cut auger is recommended in uncased bores or for bigger diameters.
| 1. Parameter | ||||
| Product Name | CFA Continuous Flight Auger | |||
| Material | Q345B | |||
| Technique | Forming, machining, heat treatment, welding | |||
| Coupling | Internal and external hexagonal joint | |||
| Diameter | 300mm～1000mm | |||
| Depth | 18m～21m | |||
| Model | Diameter (mm) | Flight Pitch (mm) | Flight Thickness (mm) | Length (m) |
| CFA300 | 300 | 250 | 16 | 2～6 |
| CFA400 | 400 | 340 | 16 | 2～6 |
| CFA500 | 500 | 400 | 16 | 2～6 |
| CFA600 | 600 | 500 | 20 | 2～6 |
| CFA700 | 700 | 500 | 20 | 2～6 |
| CFA800 | 800 | 500 | 20 | 2～6 |
| CFA900 | 900 | 500 | 20 | 2～6 |
| CFA1000 | 1000 | 500 | 20 | 2～6 |
| Customize: | ||||
| 1. Diameter: 300～1060mm | ||||
| 2. Depth: 16～25m | ||||
| 3. Flight thickness: 16~25mm | ||||
|
4. Coupling: Internal and external hexagonal joint or flange |
||||
