Product Details:
|
| OD: | 400 | Tool Box Size: | Optional |
|---|---|---|---|
| Flight Thickness: | 16 | Length: | 2 |
| Flight Pitch: | 340 | Weight: | 283 |
| High Light: | diameter 400mm Hydraulic Auger Bits,Hydraulic Auger Bits Without Leading Edge,diameter 400mm Auger Drill Bit |
||

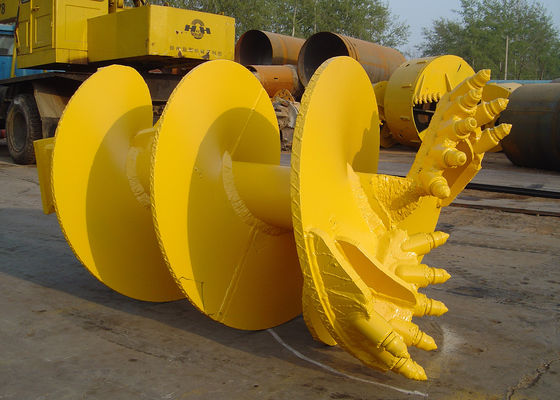

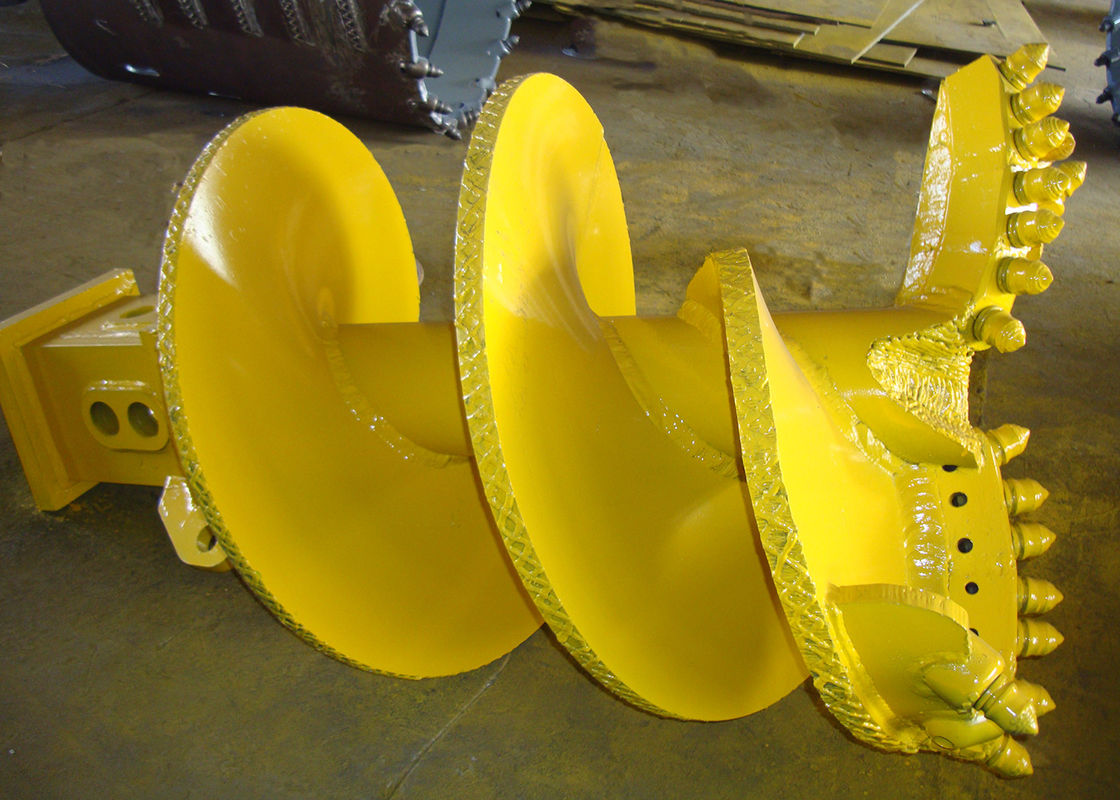

Short Spiral Without Leading Edge
Introduction
Continuous long spiral, grouting for center pipe of drilling tool, top relief valve
Featurs
The screw material is high-strength manganese steel, the single screw connection is smooth and stable, there is less excavation, and the quick drilling without casing can complete the drilling and grouting work. Low noise and low vibration. Various specifications of products can be customized according to the parameters provided by customers.
Product parameters
| OD | Tool box size | Flight thickness | Length | Flight pitch | Weight |
| D (mm) | δ(mm) | m | P (mm) | Kg | |
| 400 | Optional | 16 | 2 | 340 | 283 |
| 3 | 386 | ||||
| 4 | 489 | ||||
| 5 | 592 | ||||
| 6 | 695 | ||||
| 500 | Optional | 16 | 2 | 400 | 465 |
| 3 | 638 | ||||
| 4 | 811 | ||||
| 5 | 983 | ||||
| 6 | 1156 | ||||
| 600 | Optional | 20 | 2 | 500 | 526 |
| 3 | 730 | ||||
| 4 | 933 | ||||
| 5 | 1137 | ||||
| 6 | 1340 | ||||
| 800 | Optional | 20 | 2 | 500 | 671 |
| 3 | 948 | ||||
| 4 | 1223 | ||||
| 5 | 1499 | ||||
| 6 | 1775 | ||||
| 1000 | Optional | 25 | 2 | 600 | 856 |
| 3 | 1225 | ||||
| 4 | 1592 | ||||
| 5 | 1961 | ||||
| 6 | 2329 |
Used in
It can be used in dense soil layers and weathered layers. Suitable for foundation pile steel pile sealing pile
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
