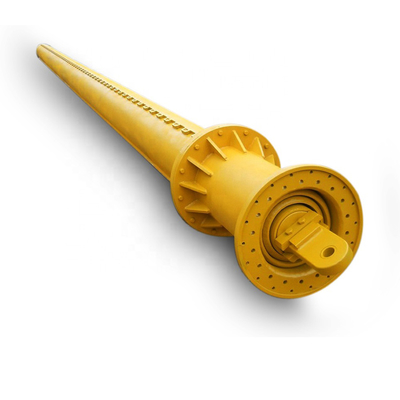

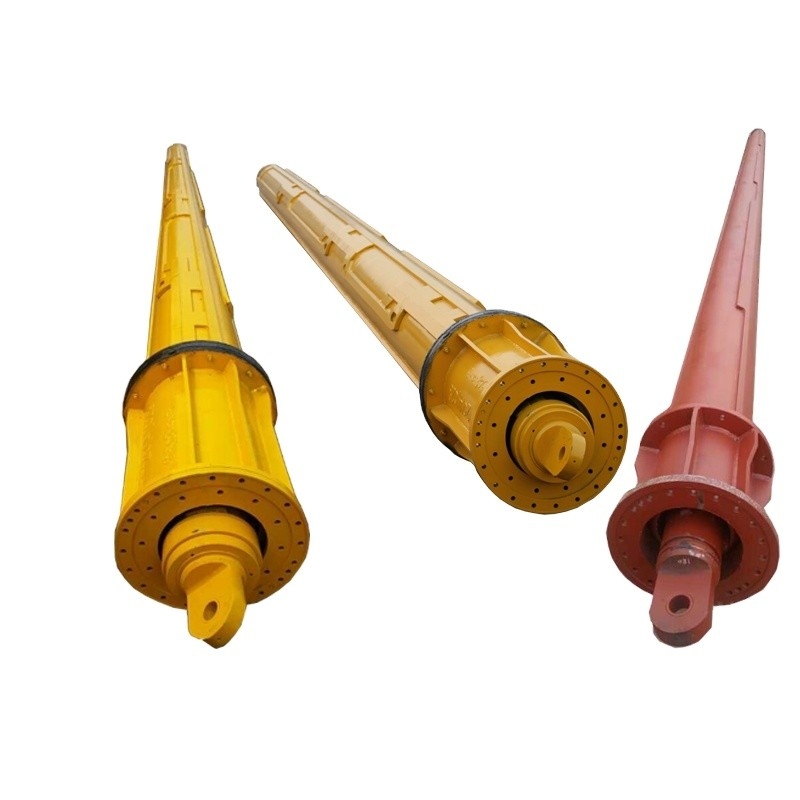

Od273-575 Kelly Bars Rotary Drilling Interlocking

Od273-575 Kelly Bars Rotary Drilling Interlocking
Od273-575 Kelly Bars Rotary Drilling Interlocking Od273-575 Kelly Bars Rotary Drilling Interlocking Od273-575 Kelly Bars Rotary Drilling Interlocking

Large Image :  Od273-575 Kelly Bars Rotary Drilling Interlocking

Product Details:
Place of Origin: Tianjin,China
Brand Name: JINYIYUAN
Certification: GB/T19001-2016/ISO9001:2015
Model Number: Interlocking Kelly Bar
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: CN¥1,000.00- CN¥100,000.00/ Piece/1 Piece/Pieces
Packaging Details: Standard exporting package
Delivery Time: As to the order quantity
Payment Terms: T/T, L/C
Supply Ability: 300 Piece/Pieces per Month

Od273-575 Kelly Bars Rotary Drilling Interlocking

Description
Graphic:: Graphic Customization Place Of Origin:: Tianjin,China
Packing:: Customized Packaging Warranty :: 6 Months
Condition:: New Applicable Industries:: Energy & Mining, Construction Works , Foundation Construction
Application:: Rotary Drilling Rig Pressure Form:: Interlocking,Friction Combined
Material:: Q355D/25Crmo
High Light:

od273mm kelly bars

,

rotary drilling interlocking kelly bars

,

od575mm kelly bar drilling

Products Description
Kelly bar
Product Description:
Product Description Understand what customers need and provide what customers want, Jinyiyuan not only supply Kelly bars for drill
rigs of world’s top brands, but also provide one-stop solution for the world foundation construction users. While providing
customized quality products, our services will leave you with no worries. We boast a group of experienced foundation construction
experts and consultants, who not only recommend the use of suitable products based on customer needs, but also give reasonable
advice on the operation of construction equipment and construction methods. Up to now,
Jinyiyuan Kelly bar have been exported to over
80+ more countries, and have gained recognition of high performance from customers.
Technical Specification of Friction Kelly Bar
Number
Out Diameter (mm)
Friction
Friction
Single Length(m)
Drilling Depth(m)
1
273


9~12
24~33
2
299
4

9~12
24~44
3
325
4

9~12
24~44
4
355
4
5
9~14
24~65
5
368
4
5
9~14
24~65
6
377
4
5
9~14
24~65
7
4394
4
5
9~15
24~70
8
406
4
5
9~15
24~70
9
419
4
5
9~15.5
24~72.5
10
440/445
4
5
9~15.5
24~72.5
11
470
5
6
9~16.5
24~93
12
508
5
6
9~18
24~102
13
530
5
6
9~19
24~108
14
575
5
6
9~19
24~108
Remark 1Max Hole Depth=Pitch Number*Single Number-Pitch Number(unit:m)
2Any other drill can be actual site measured,customized produced.Torque is customized according to customer's requirements
Techical Specification of Inter locking Kelly Bar
Number
Out Diameter (mm)
Interlock
Interlock
Single Length(m)
Drilling Depth(m)
1
273
3

9~12
24~33
2
299
3
4
9~12
24~44
3
325
3
4
9~12
24~44
4
355
3
4
9~14
24~65
5
368
3
4
9~14
24~65
6
377
3
4
9~14
24~65
7
394
3
4
9~15
24~70
8
406
3
4
9~15
24~70
9
419
3
4
9~15.5
24~72.5
10
440/445
3
4
9~15.5
24~72.5
11
470
3
4
9~16.5
24~93
12
508
3
4
9~18
24~102
13
530
*
4
9~19
24~108
Remark 1 Max Hole Depth =Pitch Number*Single Number-Pitch Number(m)
2Any other drill can be actual site measured,customized produced.Torque is customized according to customer's requirements
Product Advantage
The most professional R&D and production team.
The core R&D, processing and production personnel are all from the leading enterprises of this industry, with more than ten years
of experience in the design and manufacture of kelly bars. We have provided tailor-made Kelly bar and technical services for
almost all the well-known brand names of rotary drilling rigs both at home and abroad.
Top quality special steel materials
The steel pipe used in the Kelly bar comes from the selected materials made by the first-class steel enterprises at home and
abroad. The yield strength and service life are more than doubled compared with the general-purpose products, meeting the rigorous
requirements in drilling hard rock and various strata.
The cutting-edge manufacturing technology
The core parts of Kelly bar, such as square head, driving keys, and pressurizing point are made of imported steel, and go through
special heat treatment and surface strengthening treatment, which not only features high yield strength, wear resistance, impact
resistance, strain capacity, welding property and corrosion resistance, but also meets the high reliability requirements of Kelly
bar in the construction of hard rock, large diameter and super deep piles.
From the strict control of raw materials to multi-layer and multi-step precise welding, we comply with strict quality standards
and monitoring systems in all aspects of Kelly bar production to ensure 100% high standard quality. We are also the first Kelly
bar manufacturer in China to provide customers with a one-year warranty.
Drill Pile Foundation Tools Rock Drilling Core Barrel Drilling tools core barrel with bullet teethDrill Pile Foundation Tools Rock Drilling Core Barrel Drilling tools core barrel with bullet teethDrill Pile Foundation Tools Rock Drilling Core Barrel Drilling tools core barrel with bullet teethDrill Pile Foundation Tools Rock Drilling Core Barrel Drilling tools core barrel with bullet teeth

FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Usually it is 5~10 days if the goods are in stock. Or it is 45 days if the goods are not in stock, it is according to quantity.
Q: What ‘s your terms of payment?
A: Payment<=100USD, 100% in advance. Payment>=1000USD, 50% T/T in advance balance before shipment. irrevocable LC at sight.
