Product Details:
|
| Features: | Fast Speed, High Efficiency | Name: | Rock Drilling Bucket |
|---|---|---|---|
| Barrel Height(mm): | 1200 | Barrel Thickness (mm): | 16 |
| Thickness Of Bottom Plate: | 40 | Cutting Plate Thickness: | 50 |
| Number Of Teeth: | 2 | Weight(kg): | 700 |
| High Light: | 600mm drill bucket,two teeth massive sand drill bucket,600mm frozen soil drilling bucket |
||

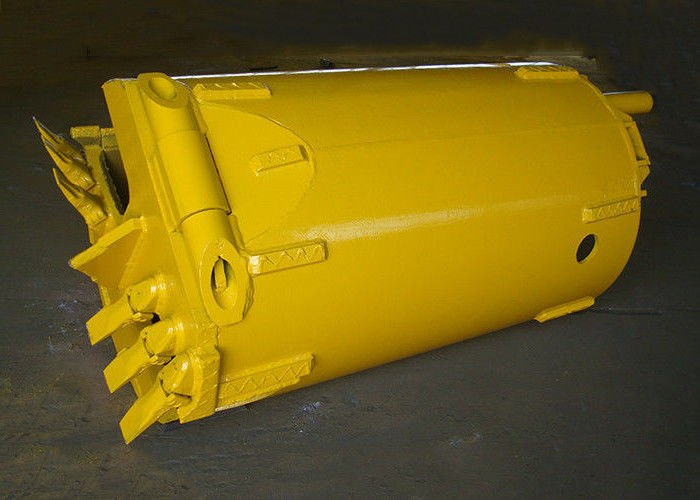

Single Bottom Double Drilling Bucket Suitable For Frozen Soil , Massive Sand
Introduction
Each drill is placed on the base plate at an angle to ensure that the wear of the drill or tool holder is minimized.
All the drill bits of our rock bucket or auger are located on the correct 6 corners, which are found after a series of drilling tests in hard rock to facilitate rotation during drilling.
Rotary drill bit, sand drilling, cylindrical high-strength manganese steel, bucket teeth
Featurs
The single-layer bottom plate is made of high-strength manganese steel, and the cylinder body is divided into straight cylinder and cone barrel. The outer diameter of the drill bit is welded with high-strength wear-resistant welding wire to extend the service life. Wear-resistant alloy shovel bucket teeth can achieve rapid drilling. Various specifications of drill bits can be customized according to the parameters provided by customers.
Product parameters
| 1.Double bottom double open rock drill bucket(straight barrel) | ||||||
| Specification | Barrel height(mm) | Barrel thickness (mm) | Thickness of bottom plate | Cutting plate thickness | Number of teeth | weight(kg) |
| φ600 | 1200 | 16 | 40 | 50 | 2 | 700 |
| φ800 | 1200 | 16 | 40 | 50 | 4 | 895 |
| φ1000 | 1200 | 16 | 40 | 50 | 6 | 1087 |
| φ1200 | 1200 | 16 | 40 | 50 | 7 | 1403 |
| φ1500 | 1200 | 16 | 40 | 50 | 9 | 1855 |
| φ1800 | 1200 | 16 | 50 | 50 | 12 | 2385 |
| φ2000 | 800 | 20 | 50 | 50 | 12 | 2800 |
| φ2200 | 800 | 20 | 50 | 50 | 14 | 2840 |
| φ2500 | 800 | 20 | 40 Box type | 40 Box type | 16 | 4770 |
| Connect square head 200mm |
Used in
It is suitable for soft to hard silt, clay, plastic frozen soil, massive sand, weathered soft bedrock, etc.
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
