Product Details:
|
| Place Of Origin:: | Tianjin, China | Application:: | Rotary Drilling Rig |
|---|---|---|---|
| Guarantee:: | 1 Year | MOQ:: | 1 Piece |
| Color:: | Customer Specified | Certification:: | ISO Standard |
| OEM:: | Available | Packing:: | Wooden Pallet |
| Delivery Time:: | 5-15 Days | Payment:: | Wire Transfer |
| Material:: | Q345B | Applicable Industries:: | Foundation Engineering, Pile Foundation Engineering Of Bridges, Subways, Civil Buildings, Etc. |
| High Light: | 1200mm Height Rock Drilling Bucket,Q345B Rock Drilling Bucket,Q345B drilling bucket |
||

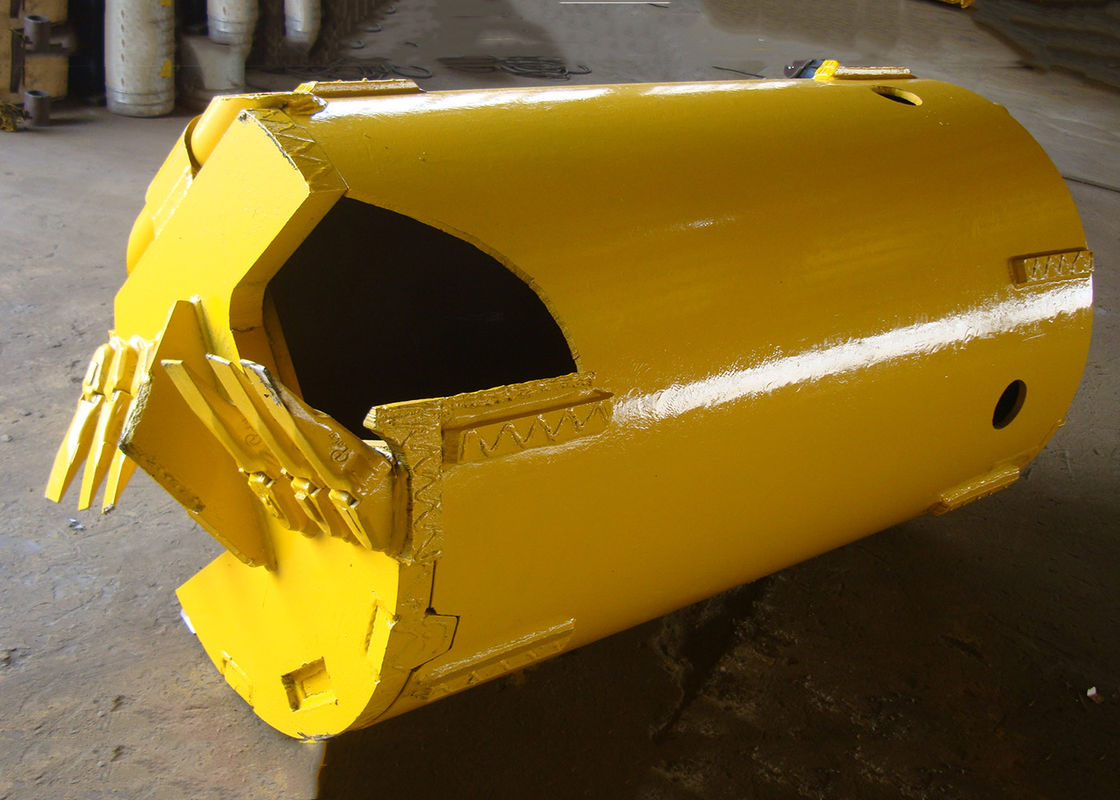

Q345B Rock Drilling Bucket For Rotary Drilling Rig
Features :
1. Large soil intake, door opening design, convenient slag disposal, and improved drilling efficiency.
2. The barrel and cutting disc adopt super-strength structure to increase the service life of the bucket.
3. Wear strips are placed on the surface of the bucket to prevent the drilling tools from being sucked in by pressure.
4. Connect the square head 130, 150, 200, 250 mm (optional).
Product parameters
| Serial number | Specification | Bucket height (mm) | Barrel thickness (mm) | Thickness of bottom plate | Cutting plate thickness | Number of teeth | Weight (kg) |
| 1 | φ600 | 1200 | 16 | 40 | 50 | 11 | 870 |
| 2 | φ800 | 1200 | 16 | 40 | 50 | 14 | 1151 |
| 3 | φ1000 | 1200 | 16 | 40 | 50 | 20 | 1382 |
| 4 | φ1200 | 1200 | 16 | 40 | 50 | 26 | 1778 |
| 5 | φ1500 | 1200 | 16 | 40 | 50 | 28 | 2295 |
| 6 | φ1800 | 1200 | 16 | 50 | 50 | 32 | 3042 |
| 7 | φ2000 | 800 | 20 | 50 | 50 | 36 | 3850 |
| 8 | φ2200 | 800 | 20 | 50 | 50 | 38 | 4670 |
| 9 | φ2500 | 800 | 20 | 40 box type | 40 box type | 40 | 6060 |
|
Connection square head 200mm |
|||||||
In Conclusion :
1. We purchase high-quality raw materials from leading raw steel factories.
2. Our rotary drilling tools can be customized according to the type of drilling rig and site conditions.
3. We require higher welding quality, so we employ welders with at least 8 years of experience.
4. Advanced welding design ensures a longer service life of the product and helps customers reduce construction budget.
