Product Details:
|
| Color:: | Yellow As Usual, Can Be Painted According To Customer Requirements | Application Soil:: | Hard Rock, Bedrock, Boulder |
|---|---|---|---|
| Hopper Diameter:: | Customized | Product Name:: | Drill Pipe |
| Transport Packaging:: | Shockproof Foam, Greased On The Switch | Place Of Origin:: | Hebei, China (Mainland) |
| High Light: | 400mm Diameter Bauer Kelly Bar,2m Length Bauer Kelly Bar,400mm Diameter friction kelly bar |
||

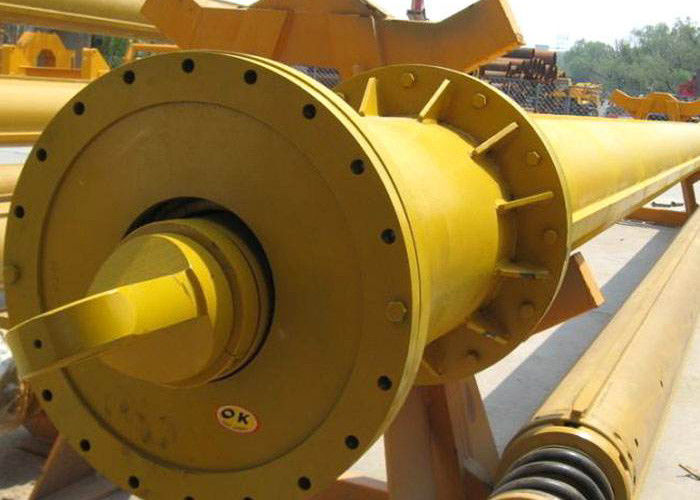

Kelly Bar Drilling Equipment For Bauer And Casagrande Piling Rigs
Introduction:
1.All kelly bars use seamless steel tube from large steel factories.
2.All steel tubes will be under sandblasting processing to improve the surface.
3.Locks and drive shell use forging wearing plate with high strength.
| Continuous flight auger | |||||
| D(mm) | δ(mm) | L(m) | P(mm) | (kg) | |
| OD | Tool box size | Flight thickness | Length | Flight pitch | Weight |
| D (mm) | δ(mm) | m | P (mm) | Kg | |
| 400 | Optional | 16 | 2 | 340 | 283 |
| 3 | 386 | ||||
| 4 | 489 | ||||
| 5 | 592 | ||||
| 6 | 695 | ||||
| 500 | Optional | 16 | 2 | 400 | 465 |
| 3 | 638 | ||||
| 4 | 811 | ||||
| 5 | 983 | ||||
| 6 | 1156 | ||||
| 600 | Optional | 20 | 2 | 500 | 526 |
| 3 | 730 | ||||
| 4 | 933 | ||||
| 5 | 1137 | ||||
| 6 | 1340 | ||||
| 800 | Optional | 20 | 2 | 500 | 671 |
| 3 | 948 | ||||
| 4 | 1223 | ||||
| 5 | 1499 | ||||
| 6 | 1775 | ||||
| 1000 | Optional | 25 | 2 | 600 | 856 |
| 3 | 1225 | ||||
| 4 | 1592 | ||||
| 5 | 1961 | ||||
| 6 | 2329 | ||||
Features :
1.Adoption of advanced international six-key type distribution technology and standard modular design.
2.The whole set of kelly bar with light weight, high strength, high linearity of the single section, thin pipe wall, small seam between sections and good wear resistance of internal and external keys, it greatly satisfies the special requirements of rotary drilling machine.
Range of application:
Not only can be used in soft ground, but also in hard ground construction. The machine-locked drill pipe can be drilled into silt layer, soil, gravel layer, pebble layer and strongly weathered rock layer.
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
