Product Details:
|
| Color:: | Yellow As Usual, Can Be Painted According To Customer Requirements | Hopper Diameter:: | Customized |
|---|---|---|---|
| Product Name:: | Drill Pipe | Transport Packaging:: | Shockproof Foam, Greased On The Switch |
| Place Of Origin:: | Hebei, China (Mainland) | Application Soil:: | Hard Rock, Bedrock, Boulder |
| High Light: | 400mm Dia Kelly Barsr,4m Length Kelly Barsr,4m Length friction kelly bar |
||

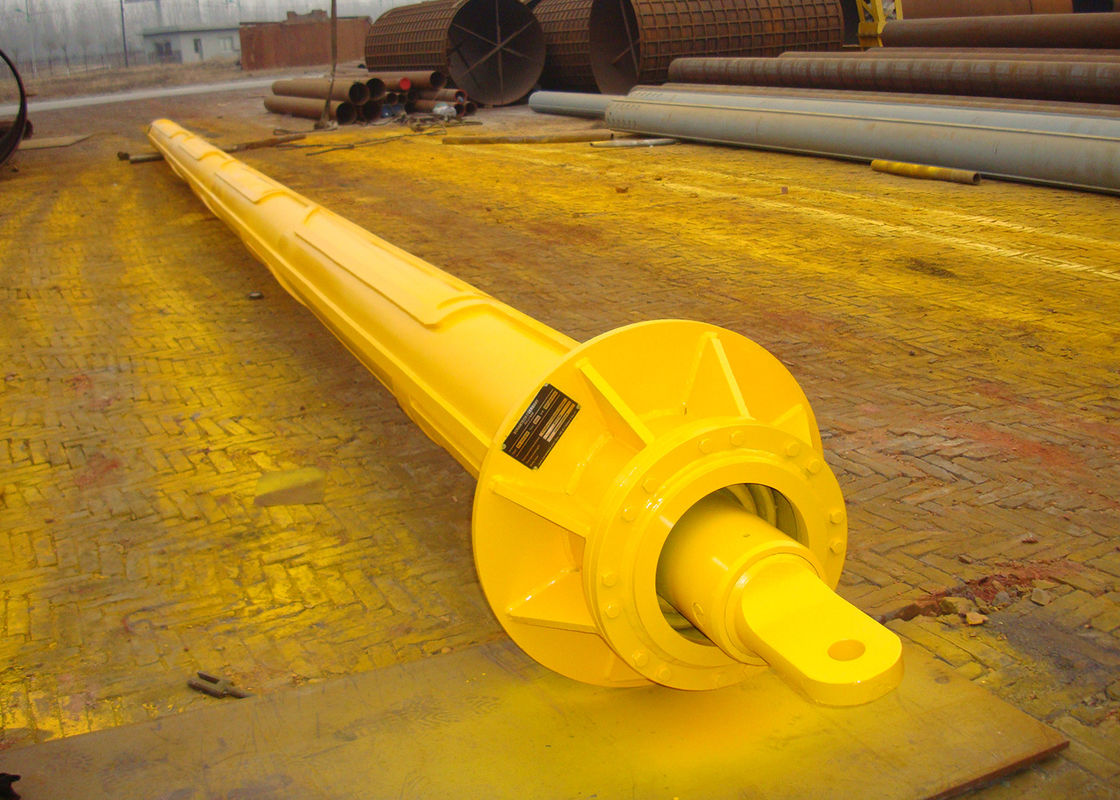

5 Elements Interlocking Kelly Bar For Bauer And Casagrande Piling Rigs
Introduction:
Rotary drilling rigs are matched with drilling tools, which transmit the torque and pressure of the power head to the following drilling tools to achieve drilling.
| Continuous flight auger | |||||
| D(mm) | δ(mm) | L(m) | P(mm) | (kg) | |
| OD | Tool box size | Flight thickness | Length | Flight pitch | Weight |
| D (mm) | δ(mm) | m | P (mm) | Kg | |
| 400 | Optional | 16 | 2 | 340 | 283 |
| 3 | 386 | ||||
| 4 | 489 | ||||
| 5 | 592 | ||||
| 6 | 695 | ||||
| 500 | Optional | 16 | 2 | 400 | 465 |
| 3 | 638 | ||||
| 4 | 811 | ||||
| 5 | 983 | ||||
| 6 | 1156 | ||||
| 600 | Optional | 20 | 2 | 500 | 526 |
| 3 | 730 | ||||
| 4 | 933 | ||||
| 5 | 1137 | ||||
| 6 | 1340 | ||||
| 800 | Optional | 20 | 2 | 500 | 671 |
| 3 | 948 | ||||
| 4 | 1223 | ||||
| 5 | 1499 | ||||
| 6 | 1775 | ||||
| 1000 | Optional | 25 | 2 | 600 | 856 |
| 3 | 1225 | ||||
| 4 | 1592 | ||||
| 5 | 1961 | ||||
| 6 | 2329 | ||||
Features and advantages:
The rod body is made of high yield strength material, with high safety factor, small size deviation, and smooth expansion and contraction of the drill rod. Internal key, external key, fast pressing, high strength, good wear resistance. The square head is made of forged materials and has been quenched and tempered.
Range of application:
not only can be used in soft ground, but also in hard ground construction. The machine-locked drill pipe can be drilled into silt layer, soil, gravel layer, pebble layer and strongly weathered rock layer.
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
