Product Details:
|
| OD D1（mm）: | 500 | Flight Thickness （mm）: | 30 |
|---|---|---|---|
| Central Shaft OD (mm): | ￠180*25 | Teeth Quantity (excludes Pilot): | 4 |
| Flight Thickness (kg): | 640 | Height: | 1350 |

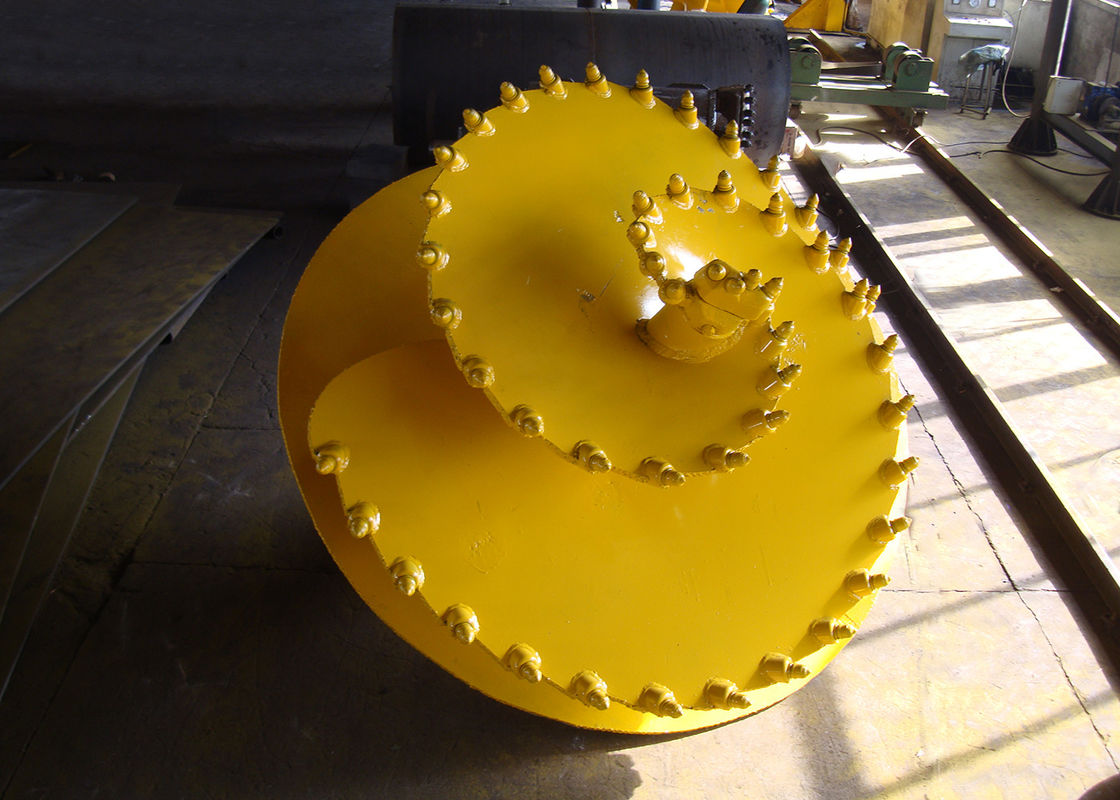

| High Light: | Rock Auger With 4pcs Teeth,500mm Diameter Rock Auger,500mm Diameter drilling auger |
||
Deep Hole Portable Rock Tractor Mounted Hydraulic Wagon Drill Machine Price For Sale In Ghana
Introduction:
Auger type:
Soil Auger
Suitable for soil layer, sand layer; permafrost, bottom with bucket teeth, straight spiral design,the top edge design make the auger have uniform force, not easy drill slant hole, to ensure the diameter of drilling requirements Rock Auger .Suitable for harder layer; weathered layer; soft gravel layer; medium hard rock layer. Central cone guide drilling, strong
crushing ability.
The single helix auger have high penetration rate.easy cleaning ,low rotary resistance.
While the double helix auger have good guiding property.efficient soil carrying.but high rotary resistance.
Product parameters
| Double-cut, single flight, straight rock auger with pilot | ||||||||
| OD | Height | Tool box size | Flight pitch | Flight thickness | Flight thickness | Teeth quantity (excludes pilot) | Central shaft OD | Weight |
| D1(mm) | H2 (mm) | P1/P2 (mm) | δ1(mm) | δ2(mm) | pc | D2 (mm) | Kg | |
| 500 | 400/550 | 30 | 30 | 4 | ￠180*25 | 640 | ||
| 600 | 1350 | Optional | 400/550 | 30 | 30 | 4 | ￠180*25 | 717 |
| 700 | 500/600 | 30 | 30 | 6 | ￠219*25 | 843 | ||
| 800 | 500/600 | 30 | 30 | 8 | ￠219*25 | 946 | ||
| 900 | 500/600 | 30 | 30 | 10 | ￠219*25 | 1077 | ||
| 1000 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1187 | ||
| 1100 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1315 | ||
| 1200 | 600/700 | 30 | 30 | 14 | ￠219*25 | 1370 | ||
| 1300 | 600/700 | 30 | 30 | 16 | ￠219*25 | 1505 | ||
| 1400 | 600/700 | 30 | 30 | 18 | ￠219*25 | 1660 | ||
| 1500 | 700/900 | 30 | 30 | 18 | ￠219*25 | 1659 | ||
| 1600 | 700/900 | 30 | 30 | 20 | ￠219*25 | 1810 | ||
| 1700 | 700/900 | 30 | 30 | 22 | ￠219*25 | 1979 | ||
| 1800 | 900 | 30 | 30 | 24 | ￠219*25 | 2020 | ||
| 1900 | 900 | 30 | 30 | 26 | ￠219*25 | 2188 | ||
| 2000 | 900 | 30 | 30 | 26 | ￠219*25 | 2351 | ||
| 2100 | 900 | 30 | 30 | 28 | ￠219*25 | 2524 | ||
| 2200 | 900 | 30 | 30 | 30 | ￠219*25 | 2700 | ||
| 2300 | 900 | 30 | 30 | 32 | ￠219*25 | 2900 | ||
| 2400 | 900 | 30 | 30 | 34 | ￠219*25 | 3100 | ||
| 2500 | 900 | 30 | 30 | 34 | ￠219*25 | 3282 | ||
The sand bucket can be matched with different drill teeth according to the hardness of the ground layer.With clay teeth, it forms a soil bucket, mainly used in softer soil layer, such as mud layer, gravel layer, silt layer, strong weathered rock layer, etc. Combined with the bullet teeth, it will be a Rock Drilling Bucket, also called a Bullet
Drilling Bucket. It can be applied to harder formations such as pebble layers, strong weathering and moderately weathered rock layer.
FAQ:
1. What is the quality control for your products?
Answer: All of our production are in lines of API rules and from signing contract , to raw materials, to each production processes, to product finish, to after-sale service, each processes and sections are in accordant with standard.
2. About lead time,payment terms, delivery ?
Answer: We always have regular models available in stock, prompt delivery is one of our advantages. Mass production depends on quantity of order.
We accept all regular payment terms including L/C, T/T, etc.
3. Can you produce according to special requirement?
Yes, we can produce products as required.
4. After Sale Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality
