Product Details:
|
| OD D1（mm）: | 500 | Flight Thickness （mm）: | 30 |
|---|---|---|---|
| Central Shaft OD (mm): | ￠180*25 | Teeth Quantity (excludes Pilot): | 4 |
| Flight Thickness (kg): | 640 | Height: | 1350 |
| High Light: | Height 1350mm Rock Drilling Auger,180*25 Shaft Rock Drilling Auger,Height 1350mm rock auger bit |
||

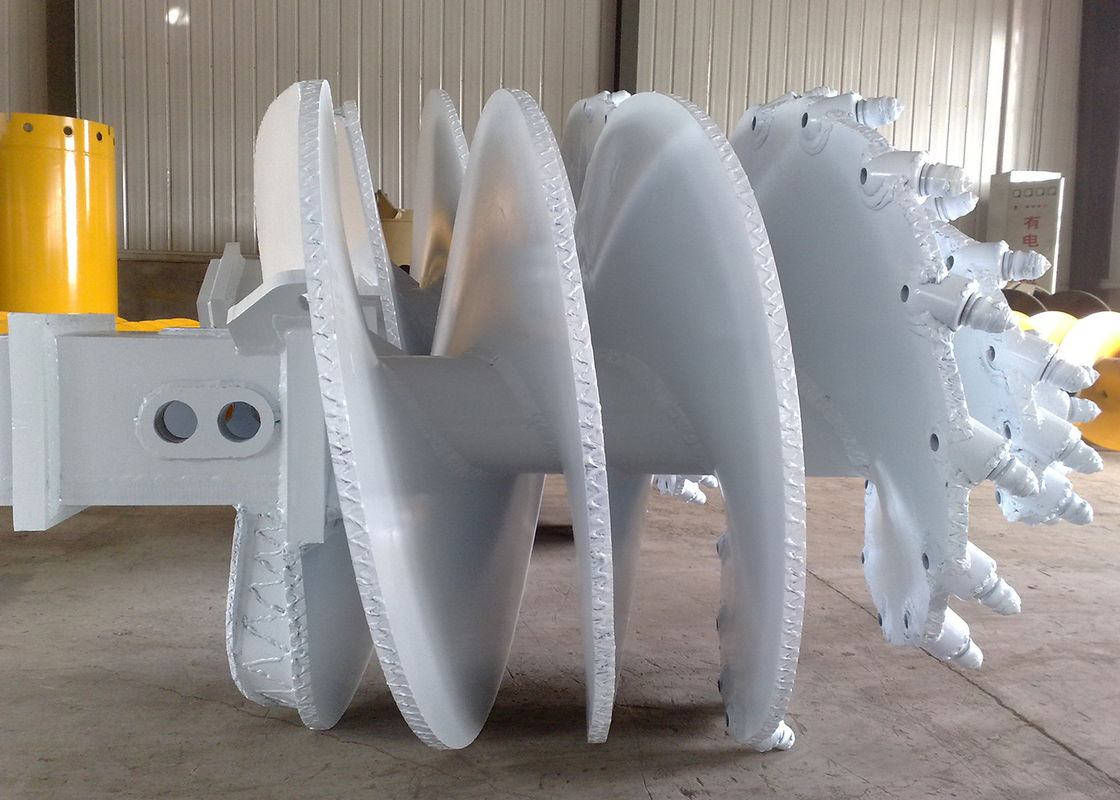

High Quality Rotary Drilling Rig Drilling Tool Rock Soil Clay Sand Conical Bucket Auger
Introduction:
Drilling Bucket:Double bottom double cut soil bucket &rock bucket
Specification:φ600-φ2500mm
According to different geological conditions of construction, different drill teeth need to be selected for construction. The
Roller bucket is suitable for super hard base rock formation, the loss is small; the Drilling bucket with bullet is suitable for
the middle weathered rock layer and the bedrock layer with high working efficiency.
Product parameters
| Double-cut, single flight, straight rock auger with pilot | ||||||||
| OD | Height | Tool box size | Flight pitch | Flight thickness | Flight thickness | Teeth quantity (excludes pilot) | Central shaft OD | Weight |
| D1(mm) | H2 (mm) | P1/P2 (mm) | δ1(mm) | δ2(mm) | pc | D2 (mm) | Kg | |
| 500 | 400/550 | 30 | 30 | 4 | ￠180*25 | 640 | ||
| 600 | 1350 | Optional | 400/550 | 30 | 30 | 4 | ￠180*25 | 717 |
| 700 | 500/600 | 30 | 30 | 6 | ￠219*25 | 843 | ||
| 800 | 500/600 | 30 | 30 | 8 | ￠219*25 | 946 | ||
| 900 | 500/600 | 30 | 30 | 10 | ￠219*25 | 1077 | ||
| 1000 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1187 | ||
| 1100 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1315 | ||
| 1200 | 600/700 | 30 | 30 | 14 | ￠219*25 | 1370 | ||
| 1300 | 600/700 | 30 | 30 | 16 | ￠219*25 | 1505 | ||
| 1400 | 600/700 | 30 | 30 | 18 | ￠219*25 | 1660 | ||
| 1500 | 700/900 | 30 | 30 | 18 | ￠219*25 | 1659 | ||
| 1600 | 700/900 | 30 | 30 | 20 | ￠219*25 | 1810 | ||
| 1700 | 700/900 | 30 | 30 | 22 | ￠219*25 | 1979 | ||
| 1800 | 900 | 30 | 30 | 24 | ￠219*25 | 2020 | ||
| 1900 | 900 | 30 | 30 | 26 | ￠219*25 | 2188 | ||
| 2000 | 900 | 30 | 30 | 26 | ￠219*25 | 2351 | ||
| 2100 | 900 | 30 | 30 | 28 | ￠219*25 | 2524 | ||
| 2200 | 900 | 30 | 30 | 30 | ￠219*25 | 2700 | ||
| 2300 | 900 | 30 | 30 | 32 | ￠219*25 | 2900 | ||
| 2400 | 900 | 30 | 30 | 34 | ￠219*25 | 3100 | ||
| 2500 | 900 | 30 | 30 | 34 | ￠219*25 | 3282 | ||
1. high quality and competitive price
2.long time use
3. best service
4. drilling auger for drilling rigs/ machinery parts
FAQ:
1. What is the quality control for your products?
Answer: All of our production are in lines of API rules and from signing contract , to raw materials, to each production processes, to product finish, to after-sale service, each processes and sections are in accordant with standard.
2. About lead time,payment terms, delivery ?
Answer: We always have regular models available in stock, prompt delivery is one of our advantages. Mass production depends on quantity of order.
We accept all regular payment terms including L/C, T/T, etc.
3. Can you produce according to special requirement?
Yes, we can produce products as required.
4. After Sale Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality
