Product Details:
|
| OD D1（mm）: | 500 | Flight Thickness （mm）: | 30 |
|---|---|---|---|
| Central Shaft OD (mm): | ￠180*25 | Teeth Quantity (excludes Pilot): | 4 |
| Flight Thickness (kg): | 640 | Height: | 1350 |
| High Light: | Rock Drilling Auger With 30mm Flight,1300mm Diameter Rock Drilling Auger,1300mm Diameter rock auger |
||

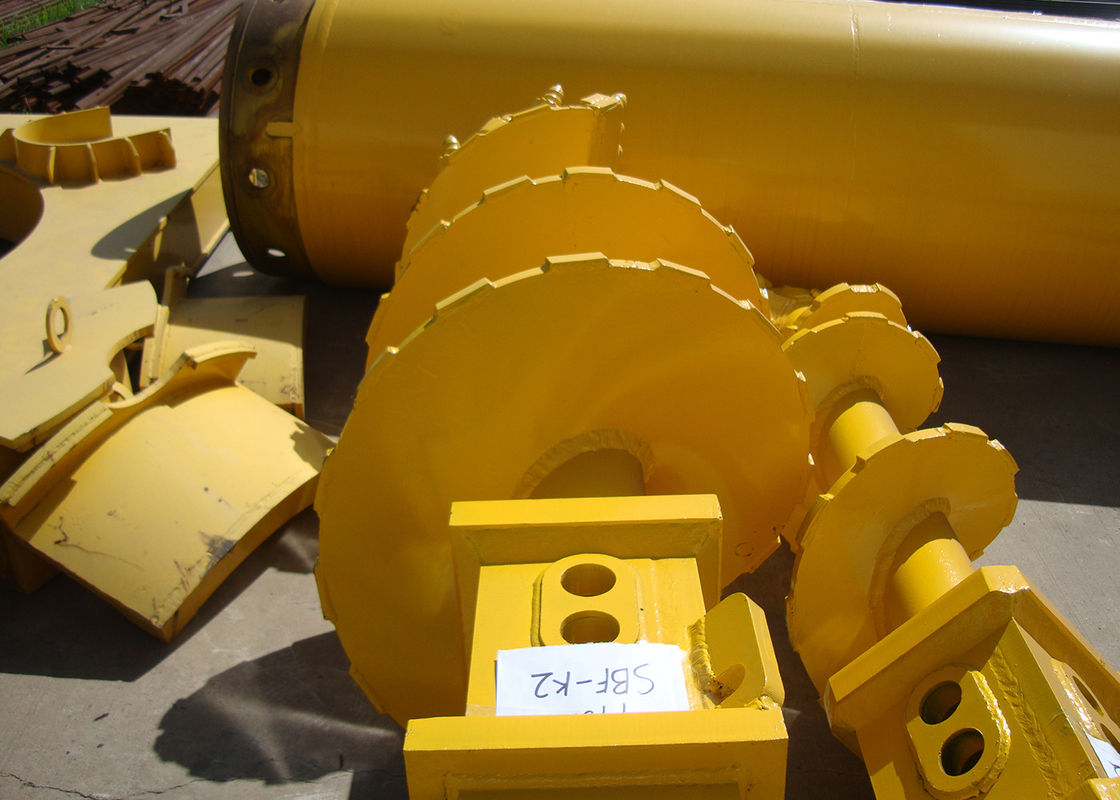

Piling And Foundation Rotary Drilling Tools Rock Auger For Piling Machine Use
Application :
It usually applicated in exploration and research,groundsource heat pumps,fence,landscaping,tree planting,Well boring,foundation piles,screw pile installation,pole and mast installations,road signage, sound barriers and so on.
Product parameters
| Double-cut, single flight, straight rock auger with pilot | ||||||||
| OD | Height | Tool box size | Flight pitch | Flight thickness | Flight thickness | Teeth quantity (excludes pilot) | Central shaft OD | Weight |
| D1(mm) | H2 (mm) | P1/P2 (mm) | δ1(mm) | δ2(mm) | pc | D2 (mm) | Kg | |
| 500 | 400/550 | 30 | 30 | 4 | ￠180*25 | 640 | ||
| 600 | 1350 | Optional | 400/550 | 30 | 30 | 4 | ￠180*25 | 717 |
| 700 | 500/600 | 30 | 30 | 6 | ￠219*25 | 843 | ||
| 800 | 500/600 | 30 | 30 | 8 | ￠219*25 | 946 | ||
| 900 | 500/600 | 30 | 30 | 10 | ￠219*25 | 1077 | ||
| 1000 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1187 | ||
| 1100 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1315 | ||
| 1200 | 600/700 | 30 | 30 | 14 | ￠219*25 | 1370 | ||
| 1300 | 600/700 | 30 | 30 | 16 | ￠219*25 | 1505 | ||
| 1400 | 600/700 | 30 | 30 | 18 | ￠219*25 | 1660 | ||
| 1500 | 700/900 | 30 | 30 | 18 | ￠219*25 | 1659 | ||
| 1600 | 700/900 | 30 | 30 | 20 | ￠219*25 | 1810 | ||
| 1700 | 700/900 | 30 | 30 | 22 | ￠219*25 | 1979 | ||
| 1800 | 900 | 30 | 30 | 24 | ￠219*25 | 2020 | ||
| 1900 | 900 | 30 | 30 | 26 | ￠219*25 | 2188 | ||
| 2000 | 900 | 30 | 30 | 26 | ￠219*25 | 2351 | ||
| 2100 | 900 | 30 | 30 | 28 | ￠219*25 | 2524 | ||
| 2200 | 900 | 30 | 30 | 30 | ￠219*25 | 2700 | ||
| 2300 | 900 | 30 | 30 | 32 | ￠219*25 | 2900 | ||
| 2400 | 900 | 30 | 30 | 34 | ￠219*25 | 3100 | ||
| 2500 | 900 | 30 | 30 | 34 | ￠219*25 | 3282 | ||
Main features :
1. Eaton motor with overflow valve.
2. Aviation standard applied in processing of gear.
3. Wear resistant steel impeller.
4. Reasonable design, high efficiency and longer life time.
FAQ
Q: What kinds of drillings tools can we provide?
A:We can provide drilling tools for almost all the brand rotary drilling rig, In addtition to the above model specification.our compang can provide special specification products to costomer requirements.
Q:What the advantages of our products?
A:We use super quality raw materail,wich makes the drilling tools durable and our drillings tools with competitive price.No matter you are dealers or end user.you will get the biggest profit.
Q:What is the lead time ?
A:Usually the lead time is 7~10 days after receipt of your payment.
Q:What payment ways do we accept?
A:We accept T/T in advance or L/C at sight.
