Product Details:
|
| OD D1（mm）: | 500 | Height: | 1350 |
|---|---|---|---|
| Flight Thickness （mm）: | 30 | Teeth Quantity (excludes Pilot): | 4 |
| Central Shaft OD (mm): | ￠180*25 | Flight Thickness (kg): | 640 |
| High Light: | 600mm Rock Auger,ock Auger With 25TL Soil Teeth,600mm drilling auger |
||

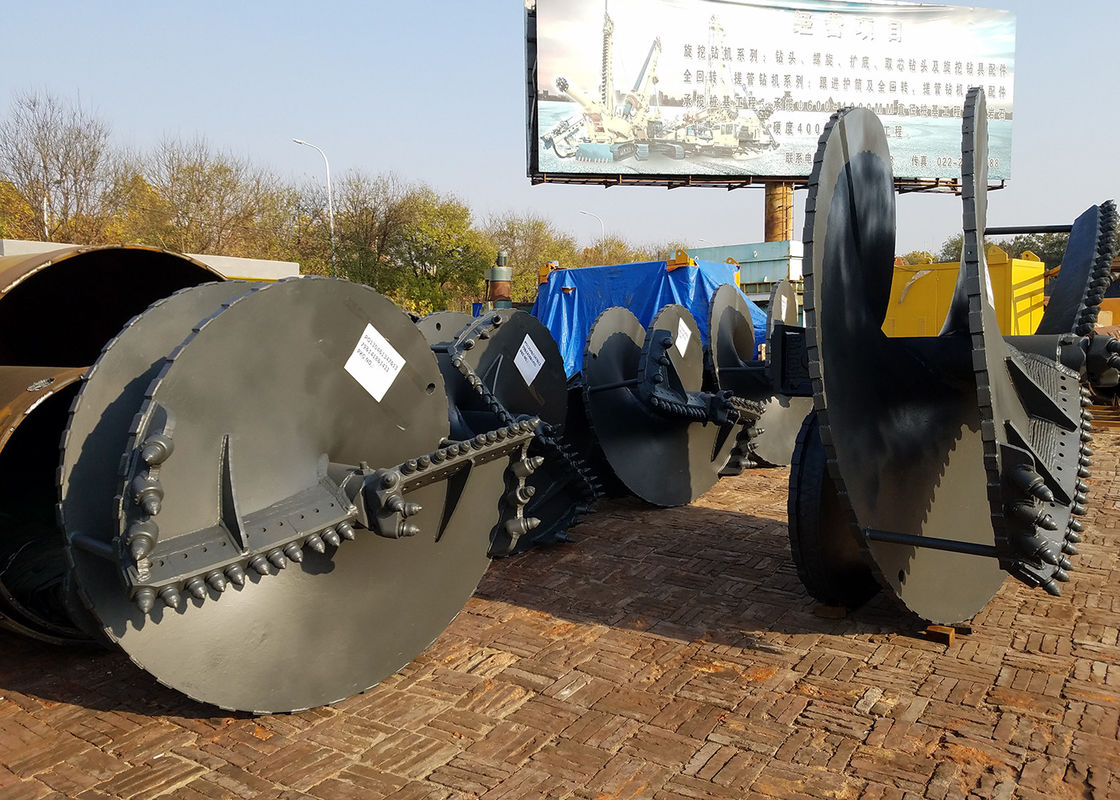

600mm Soil/Rock Drilling Auger For Drilling Machine With 25TL Soil Teeth /B47K Tungsten Carbide Teeth
Main Application:
1. Very dense gravel, weak rock (<5Mpa).
2. It is recommended to use a double-cut auger in a borehole without casing or with a larger diameter and secant pile wall.
1. Robust and wear-resistant forged steel guide, accurate positioning.
2. Use hard noodles in flight to prevent wear. Kelly box 130mm, 150mm, 200mm (optional).
Product parameters
| Double-cut, single flight, straight rock auger with pilot | ||||||||
| OD | Height | Tool box size | Flight pitch | Flight thickness | Flight thickness | Teeth quantity (excludes pilot) | Central shaft OD | Weight |
| D1(mm) | H2 (mm) | P1/P2 (mm) | δ1(mm) | δ2(mm) | pc | D2 (mm) | Kg | |
| 500 | 400/550 | 30 | 30 | 4 | ￠180*25 | 640 | ||
| 600 | 1350 | Optional | 400/550 | 30 | 30 | 4 | ￠180*25 | 717 |
| 700 | 500/600 | 30 | 30 | 6 | ￠219*25 | 843 | ||
| 800 | 500/600 | 30 | 30 | 8 | ￠219*25 | 946 | ||
| 900 | 500/600 | 30 | 30 | 10 | ￠219*25 | 1077 | ||
| 1000 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1187 | ||
| 1100 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1315 | ||
| 1200 | 600/700 | 30 | 30 | 14 | ￠219*25 | 1370 | ||
| 1300 | 600/700 | 30 | 30 | 16 | ￠219*25 | 1505 | ||
| 1400 | 600/700 | 30 | 30 | 18 | ￠219*25 | 1660 | ||
| 1500 | 700/900 | 30 | 30 | 18 | ￠219*25 | 1659 | ||
| 1600 | 700/900 | 30 | 30 | 20 | ￠219*25 | 1810 | ||
| 1700 | 700/900 | 30 | 30 | 22 | ￠219*25 | 1979 | ||
| 1800 | 900 | 30 | 30 | 24 | ￠219*25 | 2020 | ||
| 1900 | 900 | 30 | 30 | 26 | ￠219*25 | 2188 | ||
| 2000 | 900 | 30 | 30 | 26 | ￠219*25 | 2351 | ||
| 2100 | 900 | 30 | 30 | 28 | ￠219*25 | 2524 | ||
| 2200 | 900 | 30 | 30 | 30 | ￠219*25 | 2700 | ||
| 2300 | 900 | 30 | 30 | 32 | ￠219*25 | 2900 | ||
| 2400 | 900 | 30 | 30 | 34 | ￠219*25 | 3100 | ||
| 2500 | 900 | 30 | 30 | 34 | ￠219*25 | 3282 | ||
Used in
Very dense sand and weak gravel rocks, up to 20Mpa;
-It is recommended to use double cuts for uncovered holes or larger diameters and secant pile walls
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
