Product Details:
|
OD D1(mm): | 500 | Height: | 1350 |
---|---|---|---|
Flight Thickness (mm): | 30 | Teeth Quantity (excludes Pilot): | 4 |
Central Shaft OD (mm): | ¢180*25 | Flight Thickness (kg): | 640 |
High Light: | 1200mm Rock Auger Bit,B47K22h Rock Auger Bit,B47K22h pneumatic rock drill bits |

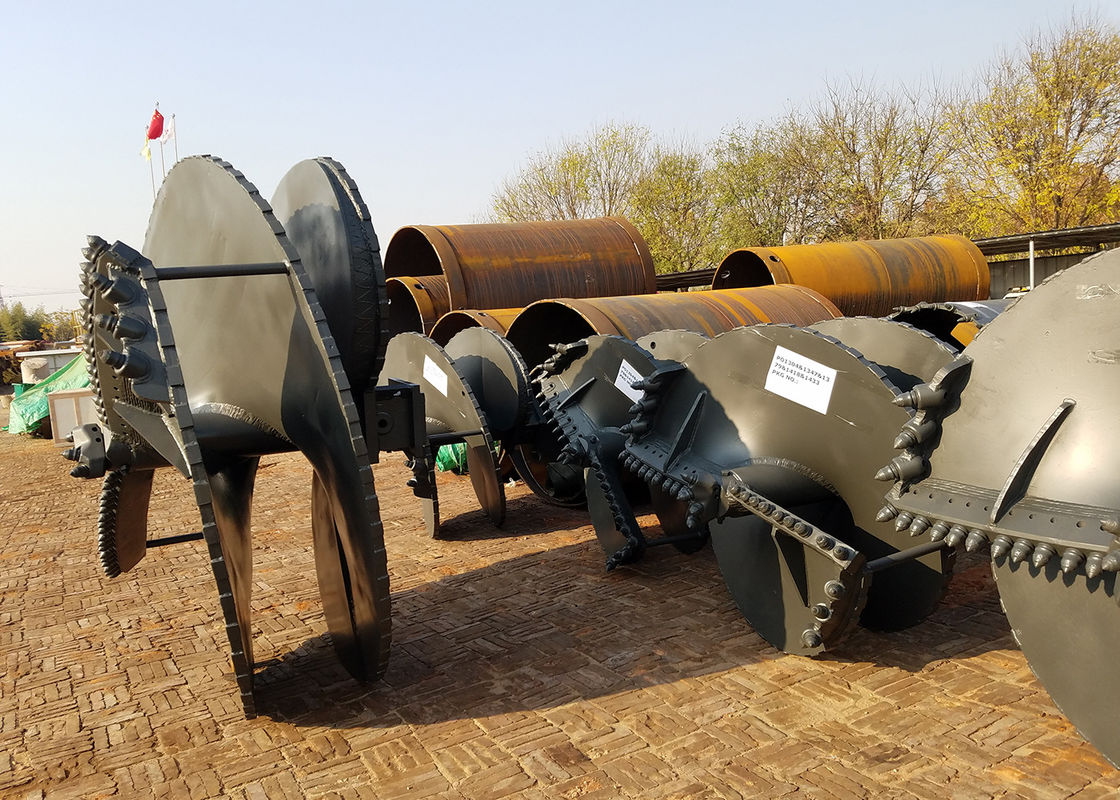

Tungsten Carbide B47K22h Rock Drill Bit Auger 1200mm
Supply capacity
50 sets per week
Packing and shipping
Packing details
Plastic film, wooden box, iron frame support
port
Any port in China
Product parameters
Double-cut, single flight, straight rock auger with pilot | ||||||||
OD | Height | Tool box size | Flight pitch | Flight thickness | Flight thickness | Teeth quantity (excludes pilot) | Central shaft OD | Weight |
D1(mm) | H2 (mm) | P1/P2 (mm) | δ1(mm) | δ2(mm) | pc | D2 (mm) | Kg | |
500 | 400/550 | 30 | 30 | 4 | ¢180*25 | 640 | ||
600 | 1350 | Optional | 400/550 | 30 | 30 | 4 | ¢180*25 | 717 |
700 | 500/600 | 30 | 30 | 6 | ¢219*25 | 843 | ||
800 | 500/600 | 30 | 30 | 8 | ¢219*25 | 946 | ||
900 | 500/600 | 30 | 30 | 10 | ¢219*25 | 1077 | ||
1000 | 500/600 | 30 | 30 | 12 | ¢219*25 | 1187 | ||
1100 | 500/600 | 30 | 30 | 12 | ¢219*25 | 1315 | ||
1200 | 600/700 | 30 | 30 | 14 | ¢219*25 | 1370 | ||
1300 | 600/700 | 30 | 30 | 16 | ¢219*25 | 1505 | ||
1400 | 600/700 | 30 | 30 | 18 | ¢219*25 | 1660 | ||
1500 | 700/900 | 30 | 30 | 18 | ¢219*25 | 1659 | ||
1600 | 700/900 | 30 | 30 | 20 | ¢219*25 | 1810 | ||
1700 | 700/900 | 30 | 30 | 22 | ¢219*25 | 1979 | ||
1800 | 900 | 30 | 30 | 24 | ¢219*25 | 2020 | ||
1900 | 900 | 30 | 30 | 26 | ¢219*25 | 2188 | ||
2000 | 900 | 30 | 30 | 26 | ¢219*25 | 2351 | ||
2100 | 900 | 30 | 30 | 28 | ¢219*25 | 2524 | ||
2200 | 900 | 30 | 30 | 30 | ¢219*25 | 2700 | ||
2300 | 900 | 30 | 30 | 32 | ¢219*25 | 2900 | ||
2400 | 900 | 30 | 30 | 34 | ¢219*25 | 3100 | ||
2500 | 900 | 30 | 30 | 34 | ¢219*25 | 3282 |
Used in
Suitable for hard bedrock or gravel
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
