Product Details:
|
Place Of Origin:: | Tianjin, China | Color:: | Customer Specified |
---|---|---|---|
Guarantee:: | 1 Year | Certification:: | ISO Standard |
Applicable Industries:: | Foundation Engineering, Pile Foundation Engineering Of Bridges, Subways, Civil Buildings, Etc. | Application:: | Rotary Drilling Rig |
Packing:: | Wooden Pallet | MOQ:: | 1 Piece |
Delivery Time:: | 5-15 Days | Payment:: | Wire Transfer |
Material:: | Q345B | OEM:: | Available |
High Light: | Q345B Drilling Bucket Auger,20mm Drilling Bucket Auger,20mm drilling bucket |

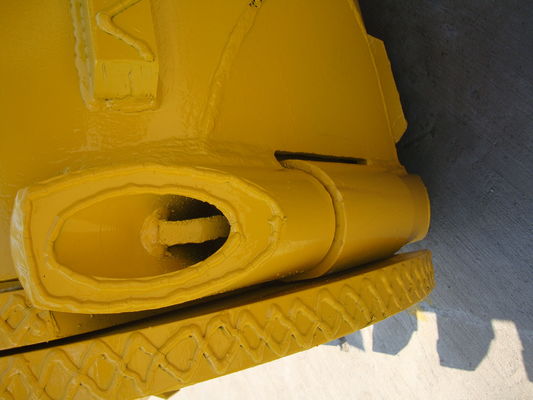

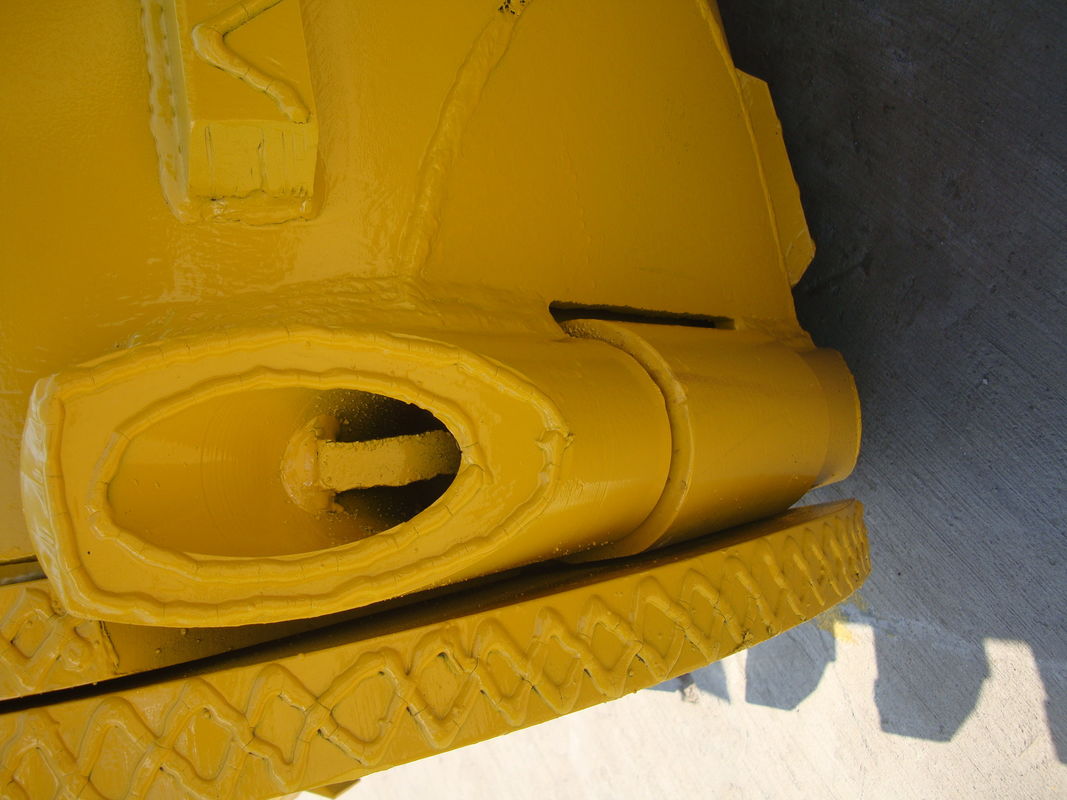

Rotary Drilling Rig Drill Bit Rock Tube Drill Bucket,Bullet Teeth
Introduction
1. We purchase high-quality raw materials from leading raw steel factories.
2. Our rotary drilling tools can be customized according to the type of drilling rig and site conditions.
3. We require higher welding quality, so we employ welders with at least 8 years of experience.
Product parameters
Serial number | Specification | Bucket height (mm) | Barrel thickness (mm) | Thickness of bottom plate | Cutting plate thickness | Number of teeth | Weight (kg) |
1 | φ600 | 1200 | 16 | 40 | 50 | 11 | 870 |
2 | φ800 | 1200 | 16 | 40 | 50 | 14 | 1151 |
3 | φ1000 | 1200 | 16 | 40 | 50 | 20 | 1382 |
4 | φ1200 | 1200 | 16 | 40 | 50 | 26 | 1778 |
5 | φ1500 | 1200 | 16 | 40 | 50 | 28 | 2295 |
6 | φ1800 | 1200 | 16 | 50 | 50 | 32 | 3042 |
7 | φ2000 | 800 | 20 | 50 | 50 | 36 | 3850 |
8 | φ2200 | 800 | 20 | 50 | 50 | 38 | 4670 |
9 | φ2500 | 800 | 20 | 40 box type | 40 box type | 40 | 6060 |
Connection square head 200mm |
Feature :
1. Large soil intake, door opening design, convenient slag disposal, and improved drilling efficiency.
2. The barrel and cutting disc adopt super-strength structure to increase the service life of the bucket.
3. Wear strips are placed on the surface of the bucket to prevent the drilling tools from being sucked in by pressure.
4. Connect the square head 130, 150, 200, 250 mm (optional).
FAQ
Q1. Are you a manufacturer?
Yes, we are a professional driiling tools and accessories manufacturer.
Q2.What does your company produce?
The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.
Q3. How do you control the quality of your products?
First, we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.
Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;
Third, we promise good quality and after-sales service.
Q4. Can you produce according to special requirement?
Yes, we can produce products as required.
