Product Details:
|
| H（mm）: | 350 | B(mm): | 40 |
|---|---|---|---|
| N(Piece): | 4 | Hole（Piece）: | 8 |
| Bolt: | Ⅰ | Weight（kg/set）: | 233 |
| High Light: | 620mm diameter Casing Drilling System,350mm height Casing Drilling System,620mm diameter Casing Joints |
||

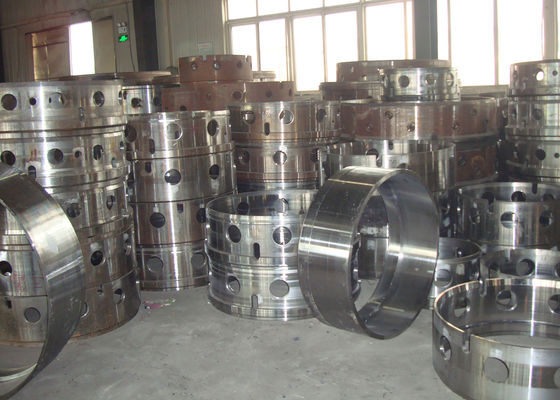

Full Follow-Up Casing Joints
Introduction
The male and female connectors at both ends of the casing ensure that each casing is precisely connected.
Featurs
The joints are made of 25CrMo forgings, which are wear-resistant and not suitable for deformation. According to customer requirements, products of different specifications and sizes can be provided.
Product parameters
| Regular Duty Casing Joint | ||||||
| D1/D2 | H(mm) | b(mm) | n(Piece) | Hole(Piece) | Bolt | Weight(kg/set) |
| 620/540 | 350 | 40 | 4 | 8 | Ⅰ | 233 |
| 750/670 | 350 | 40 | 4 | 10 | Ⅰ | 285 |
| 800/720 | 350 | 40 | 4 | 10 | Ⅰ | 304 |
| 880/800 | 350 | 40 | 4 | 10 | Ⅰ | 333 |
| 900/820 | 350 | 40 | 4 | 10 | Ⅰ | 341 |
| 1000/920 | 350 | 40 | 4 | 10 | Ⅰ | 381 |
| 1180/1100 | 350 | 40 | 4 | 12 | Ⅰ | 438 |
| 1200/1120 | 350 | 40 | 4 | 12 | Ⅰ | 450 |
| 1300/1220 | 350 | 40 | 4 | 12 | Ⅰ | 483 |
| 1500/1400 | 480 | 50 | 4 | 12 | Ⅰ | 950 |
| 1800/1700 | 480 | 50 | 4 | 16 | Ⅰ | 1146 |
| 2000/1880 | 480 | 60 | 6 | 12 | Ⅱ | 1745 |
| 2500/2380 | 480 | 60 | 8 | 16 | Ⅱ | 2197 |
Used in
wall protection of pile foundation engineering, construction of full-pipe cast-in-place pile
