Product Details:
|
| L（m）: | 2m | Weight（kg）: | 740 |
|---|---|---|---|
| A1(mm): | 12 | A2(mm): | 8 |
| A3(mm): | 40 | Color: | Customization |
| High Light: | 2m Length Casing Drilling System,750mm Diameter Casing Drilling System,2m Length tremie pipe hopper |
||

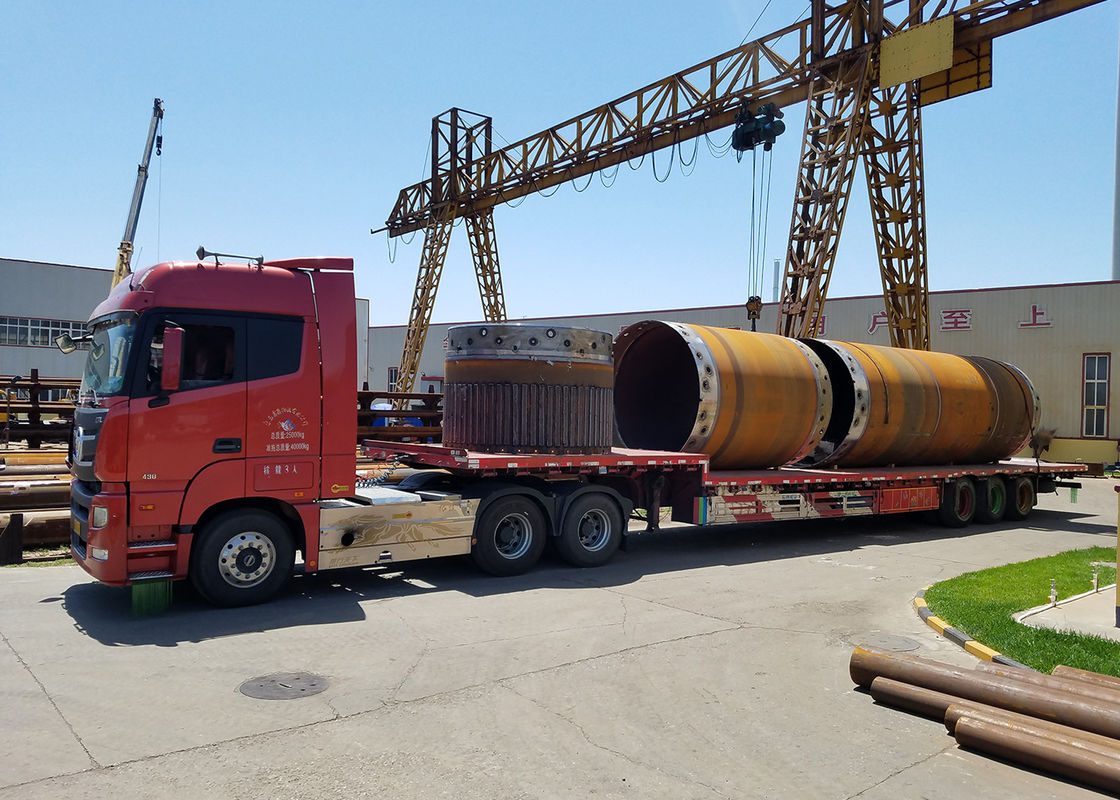

Casing Drive Casing Adapter
Introduction
Male and female joint casing, pile hole wall protection
Featurs
The joints are made of 25CrMo forgings, which are wear-resistant and not suitable for deformation. The pipe body is Q345B, bolt 42CrMo material, high strength, high torque resistance. The joint bolts are double-row holes. Longer and thicker joints, suitable for high torque drilling
Product parameters
| Heavy Duty Double-wall Casing | ||||||||
| D1/D2(mm) | L(m) | a1(mm) | a2(mm) | a3(mm) | ||||
| 2m | 3m | 4m | 5m | 6m | ||||
| Weight(kg) | ||||||||
| 620/540 | 740 | 1080 | 1420 | 1839 | 2186 | 12 | 8 | 40 |
| 750/670 | 905 | 1321 | 1730 | 2234 | 2665 | 12 | 8 | 40 |
| 800/720 | 1026 | 1489 | 1949 | 2417 | 2882 | 12 | 8 | 40 |
| 880/800 | 1070 | 1560 | 2040 | 2650 | 3159 | 12 | 8 | 40 |
| 900/820 | 1154 | 1673 | 2188 | 2711 | 3231 | 12 | 8 | 40 |
| 1000/920 | 1230 | 1780 | 2330 | 3025 | 3604 | 12 | 8 | 40 |
| 1180/1100 | 1590 | 2320 | 3060 | 3972 | 4753 | 16 | 8 | 40 |
| 1200/1120 | 1704 | 2487 | 3276 | 4061 | 4851 | 16 | 8 | 40 |
| 1300/1220 | 1750 | 2560 | 3380 | 4394 | 5245 | 16 | 8 | 40 |
| 1500/1400 | 2630 | 3820 | 5015 | 6492 | 7717 | 20 | 10 | 50 |
| 1800/1700 | 3394 | 4870 | 6347 | 7824 | 9301 | 20 | 10 | 50 |
Used in
Pile foundation engineering wall protection, larger diameter pile holes, can be used with rotary drilling rigs and full-rotation drilling rigs
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
