Product Details:
|
| Ф（mm）: | 620/540 | D(mm): | 70 |
|---|---|---|---|
| B(mm): | 848 | H(mm): | 1794 |
| Weight（kg）: | 679 | Color: | Customization |
| High Light: | 620mm Dia Casing Drilling System,620mm Dia Casing Drilling System,620mm Dia Casing Driver |
||

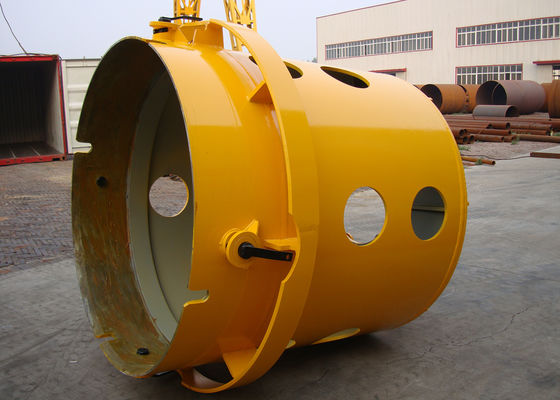

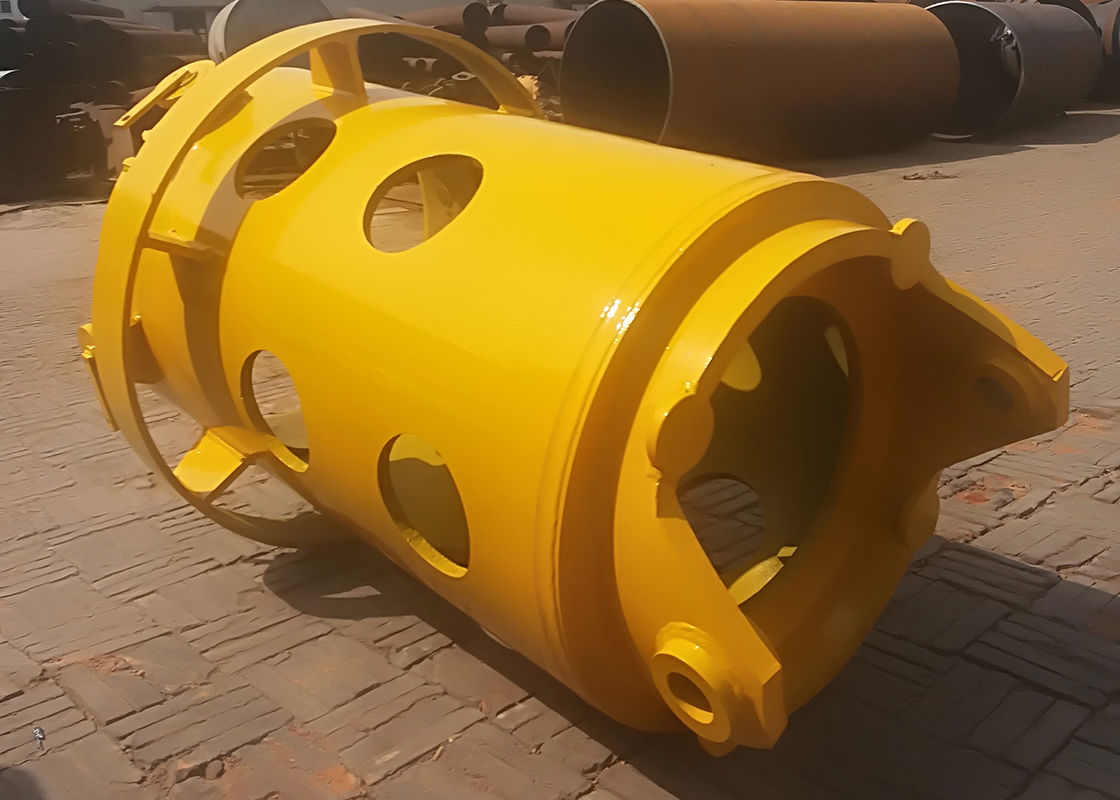

Full Follow-Up Casing Driver
Introduction
Transfer the torque of the rotary drilling rig to the casing
Featurs
The joints are made of 25CrMo forgings, which are wear-resistant and not suitable for deformation. The tube body is Q345B, and the locking part is 42CrMo. With inspection holes, the guard ring protects the locking parts safely. The upper connection can be customized according to the size of the model specified by the customer.
Product parameters
| Casing Drive Adapter | ||||
| Ф(mm) | d(mm) | B(mm) | H(mm) | Weight(kg) |
| 620/540 | 70 | 848 | 1794 | 679 |
| 750/670 | 70 | 848 | 1794 | 759 |
| 800/720 | 70 | 848 | 1794 | 816 |
| 880/800 | 70 | 848 | 1794 | 870 |
| 900/820 | 70 | 848 | 1794 | 894 |
| 1000/920 | 70 | 848 | 1794 | 1015 |
| 1180/1100 | 70 | 848 | 1794 | 1202 |
| 1200/1120 | 70 | 848 | 1794 | 1235 |
| 1300/1220 | 70 | 848 | 1794 | 1343 |
| 1500/1400 | 70 | 848 | 1794 | 2019 |
| 1800/1700 | 70 | 848 | 1794 | 2580 |
| 2000/1880 | 70 | 848 | 1794 | 3673 |
| 2500/2380 | 70 | 848 | 1794 | 5072 |
Used in
follow-up operation of a full set of pipes for pile foundation engineering of rotary drilling rigs.
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
