Product Details:
|
| D1/D2（mm）: | 620/540 | H（mm）: | 350 |
|---|---|---|---|
| B(mm): | 40 | N(Piece): | 4 |
| Hole（Piece）: | 8 | Weight（kg/set）: | 233 |
| High Light: | 620mm Diameter Casing Drilling System,H350mm Casing Drilling System,620mm Diameter Casing Joints |
||

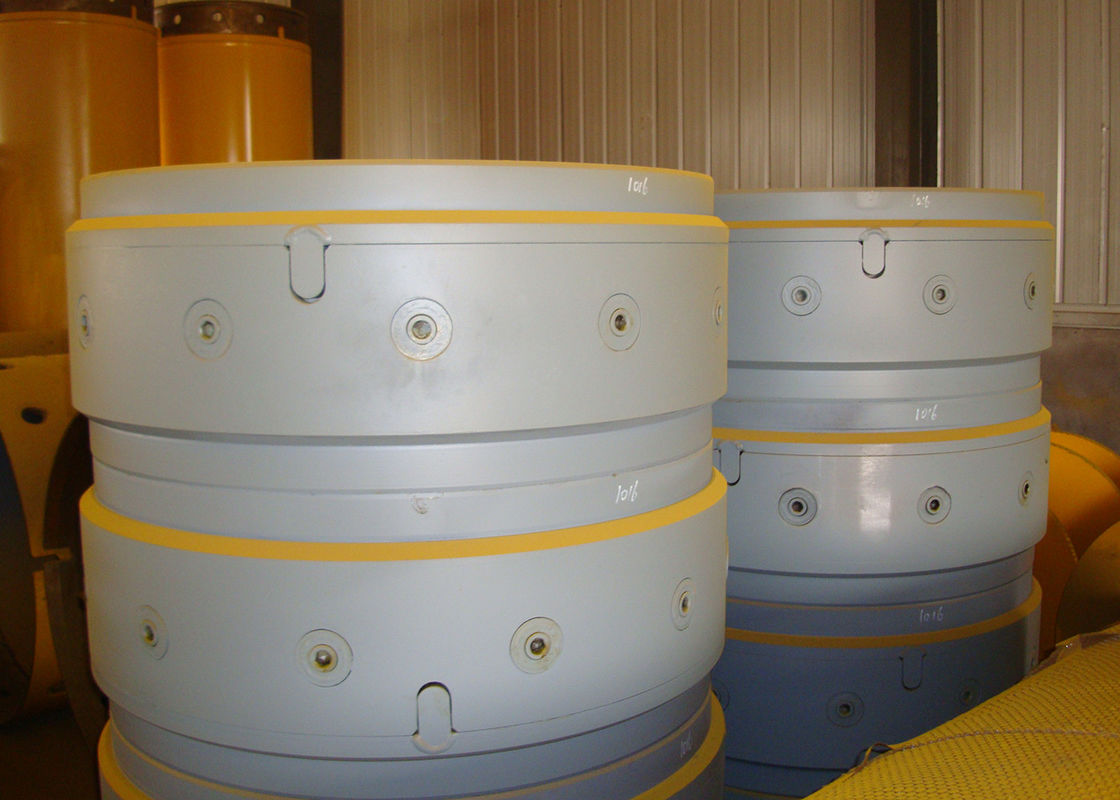

Full Follow-Up Casing Joints
Product parameters
| Regular Duty Casing Joint | ||||||
| D1/D2 | H(mm) | b(mm) | n(Piece) | Hole(Piece) | Bolt | Weight(kg/set) |
| 620/540 | 350 | 40 | 4 | 8 | Ⅰ | 233 |
| 750/670 | 350 | 40 | 4 | 10 | Ⅰ | 285 |
| 800/720 | 350 | 40 | 4 | 10 | Ⅰ | 304 |
| 880/800 | 350 | 40 | 4 | 10 | Ⅰ | 333 |
| 900/820 | 350 | 40 | 4 | 10 | Ⅰ | 341 |
| 1000/920 | 350 | 40 | 4 | 10 | Ⅰ | 381 |
| 1180/1100 | 350 | 40 | 4 | 12 | Ⅰ | 438 |
| 1200/1120 | 350 | 40 | 4 | 12 | Ⅰ | 450 |
| 1300/1220 | 350 | 40 | 4 | 12 | Ⅰ | 483 |
| 1500/1400 | 480 | 50 | 4 | 12 | Ⅰ | 950 |
| 1800/1700 | 480 | 50 | 4 | 16 | Ⅰ | 1146 |
| 2000/1880 | 480 | 60 | 6 | 12 | Ⅱ | 1745 |
| 2500/2380 | 480 | 60 | 8 | 16 | Ⅱ | 2197 |
Used in
It fit to rock, concrete, cement, asphalt and so on
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
