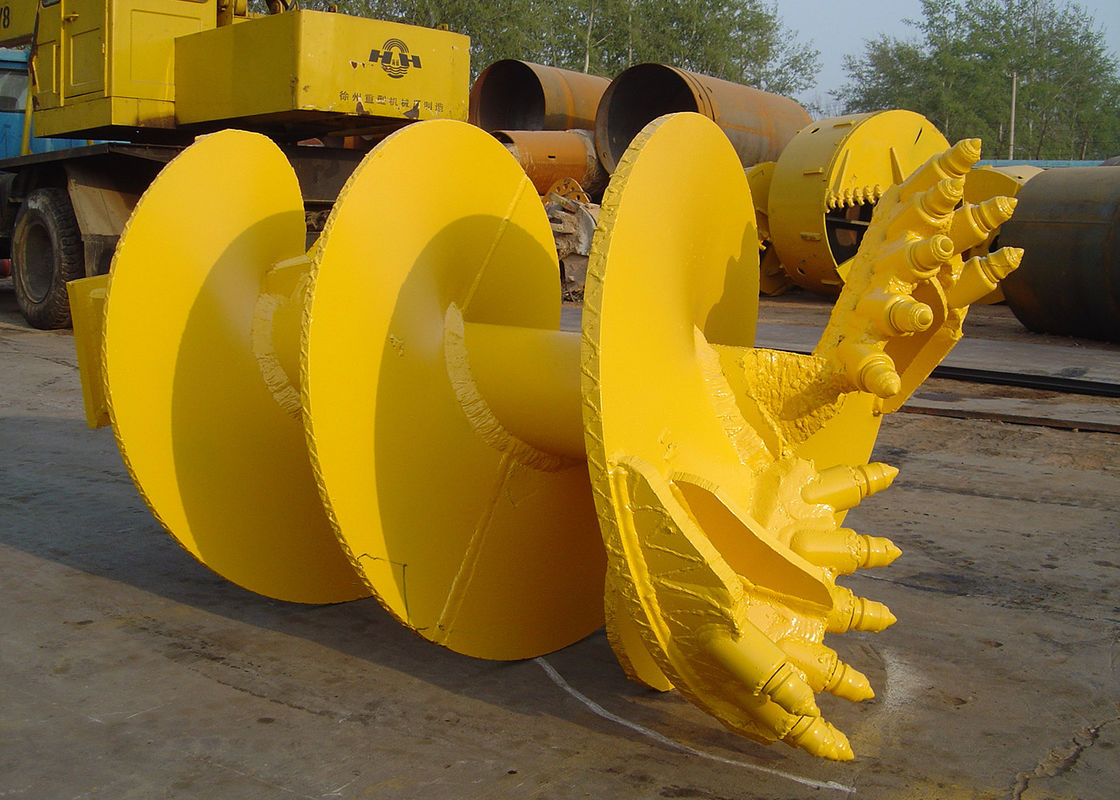

Single Screw 500mm Flight 601Kg Rock Drilling Auger



Spiral drill bits, spiral blades, bullet alloy picks for rotary drilling rigs.





the start is a double-head flat head, the screw material is high-strength manganese steel, the single screw connection is smooth and stable, and the interchangeable bullet-head alloy pick is convenient for replacement and maintenance. The large thickness center tube can withstand greater torque. Various specifications of products can be customized according to the parameters provided by customers.



Product parameters





Double-cut,single flight, straight rock auger without pilot
OD	Height	Tool box size	Flight pitch	Flight thickness	Flight thickness	Teeth quantity	Central shaft OD	Weight
D1(mm)	H(mm)		P1/P2 (mm)	δ1(mm)	δ2(mm)	pc	D2 (mm)	Kg
500			400/550	30	30	4	￠180*25	601
600	1350	Optional	400/550	30	30	4	￠180*25	678
700			500/600	30	30	6	￠219*25	804
800			500/600	30	30	8	￠219*25	905
900			500/600	30	30	10	￠219*25	1038
1000			500/600	30	30	12	￠219*25	1149
1100			500/600	30	30	12	￠219*25	1277
1200			600/700	30	30	14	￠219*25	1331
1300			600/700	30	30	16	￠219*25	1466
1400			600/700	30	30	18	￠219*25	1621
1500			700/900	30	30	18	￠219*25	1620
1600			700/900	30	30	20	￠219*25	1771
1700			700/900	30	30	22	￠219*25	1940
1800			900	30	30	24	￠219*25	1981
1900			900	30	30	26	￠219*26	2149
2000			900	30	30	26	￠219*25	2312
2100			900	30	30	28	￠219*25	2485
2200			900	30	30	30	￠219*25	2661
2300			900	30	30	32	￠219*25	2861
2400			900	30	30	34	￠219*25	3061
2500			900	30	30	34	￠219*25	3243

Used in



suitable for gravel layers and weakly weathered rock formations





FAQ



Q: What is the product range of Jinyiyuan Machinery?

A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.





Q: How about the after-sales service of Jinyiyuan Machinery?

A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.





Q: Can I visit the factory?

A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.





Q: What is the delivery time?

A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
