Product Details:
|
| Barrel Height(mm): | 1200 | Barrel Thickness (mm): | 16 |
|---|---|---|---|
| Thickness Of Bottom Plate: | 40 | Cutting Plate Thickness: | 50 |
| Number Of Teeth: | 11 | Weight(kg): | 870 |
| High Light: | 16mm Thick Drilling Bucket,11pcs teeth Drilling Bucket,16mm Thick Rock Drilling Bucket |
||

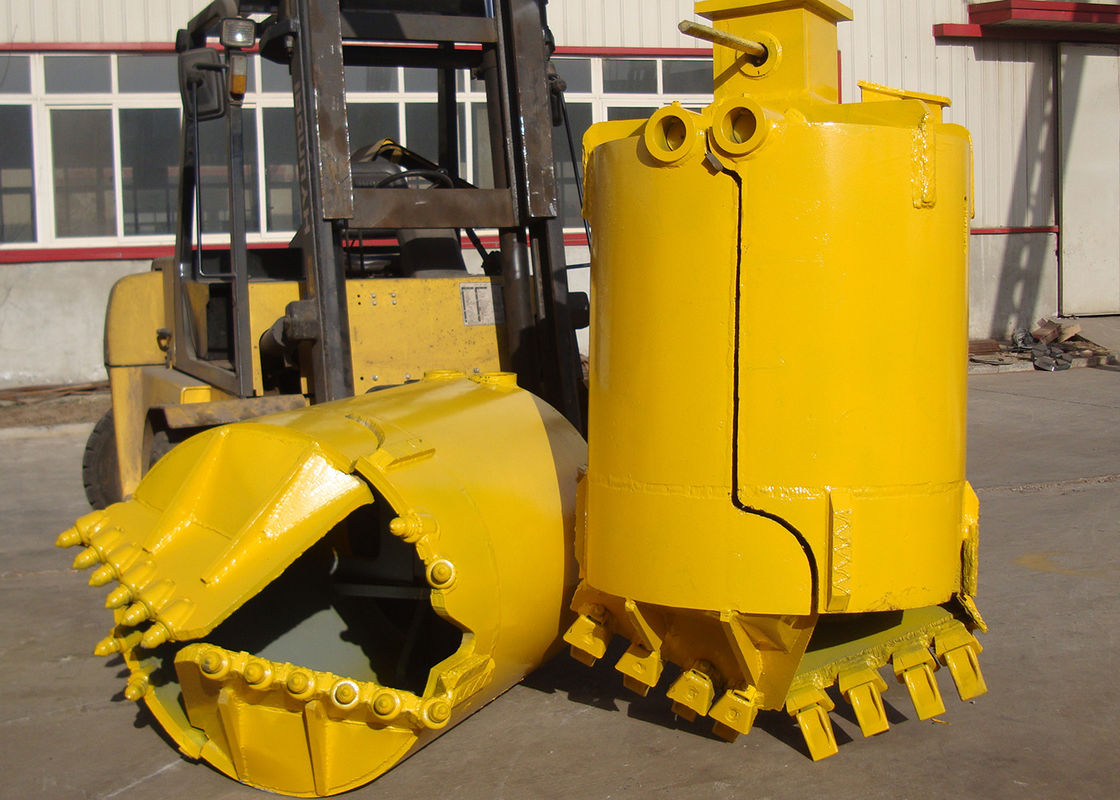

Double Bottom Double Open Rock Drill Bucket(Straight Barrel)
Introduction
Rotary drilling rig for drilling bit, soil soft rock drilling, cylinder high strength manganese steel, alloy pick.
Features
Double bottom and double open cutting disc. The manufacturing material is high-strength manganese steel. The outer diameter of drill bit is welded with high-strength wear-resistant welding wire to prolong the service life. Replaceable alloy pick angle staggered arrangement, easy drilling, fast speed, high efficiency. The opening and closing mechanism can be operated manually and mechanically. Removable center quarter. High frequency quenching of corner shaft and central shaft, wear resistance and long service life. Various specifications of drill bits can be customized according to the parameters provided by customers.
Product parameters
| 1.Double bottom double open rock drill bucket(straight barrel) | ||||||
| Specification | Barrel height(mm) | Barrel thickness (mm) | Thickness of bottom plate | Cutting plate thickness | Number of teeth | weight(kg) |
| φ600 | 1200 | 16 | 40 | 50 | 11 | 870 |
| φ800 | 1200 | 16 | 40 | 50 | 14 | 1151 |
| φ1000 | 1200 | 16 | 40 | 50 | 20 | 1382 |
| φ1200 | 1200 | 16 | 40 | 50 | 26 | 1778 |
| φ1500 | 1200 | 16 | 40 | 50 | 28 | 2295 |
| φ1800 | 1200 | 16 | 50 | 50 | 32 | 3042 |
| φ2000 | 800 | 20 | 50 | 50 | 36 | 3850 |
| φ2200 | 800 | 20 | 50 | 50 | 38 | 4670 |
| φ2500 | 800 | 20 | 40 Box type | 40 Box type | 40 | 6060 |
| Connect square head 200mm |
Used in
It is suitable for drilling in rock layer or hard pebble layer.
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
