Product Details:
|
| Color:: | Yellow As Usual, Can Be Painted According To Customer Requirements | Hopper Diameter:: | Customized |
|---|---|---|---|
| Product Name:: | Drill Pipe | Transport Packaging:: | Shockproof Foam, Greased On The Switch |
| Application Soil:: | Hard Rock, Bedrock, Boulder | Place Of Origin:: | Hebei, China (Mainland) |
| High Light: | 465Kg Kelly Bars,500mm Diameter Kelly Bars,500mm Diameter kelly bar drilling equipment |
||

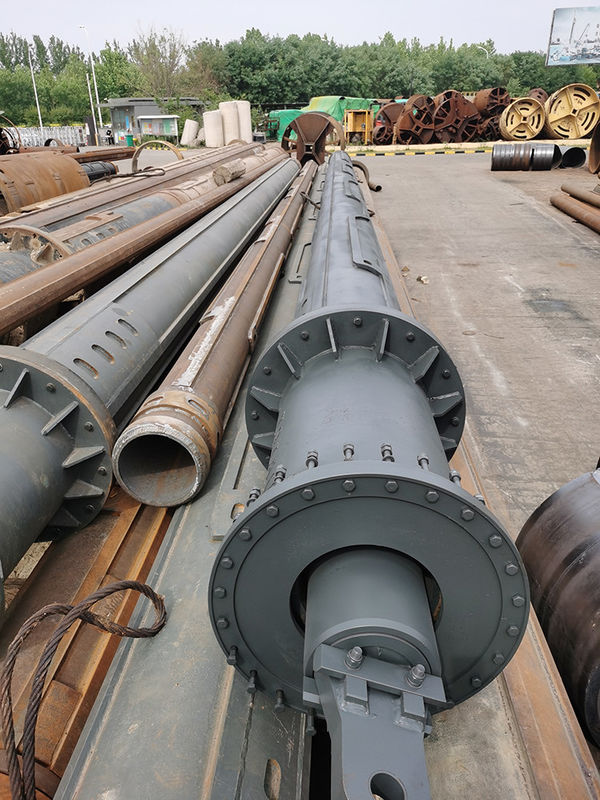

Construction Foundation Drilling Equipment Spare Parts Kelly Bar For BAUER/SANY/XCMG/CASAGRANDE
Introduction:
(1).Outer Diameter: 470mm, 440mm, 394mm, 377mm, 406mm, 508mm or as required .
(2).Length of Single Section : design as demand, according to the piling diameter and soil condition prolong or shorten, increase of efficiency by drilling more.
(3).Quantity of Sections: 3 sections, 4 sections, 5 sections or or as required
| Continuous flight auger | |||||
| D(mm) | δ(mm) | L(m) | P(mm) | (kg) | |
| OD | Tool box size | Flight thickness | Length | Flight pitch | Weight |
| D (mm) | δ(mm) | m | P (mm) | Kg | |
| 400 | Optional | 16 | 2 | 340 | 283 |
| 3 | 386 | ||||
| 4 | 489 | ||||
| 5 | 592 | ||||
| 6 | 695 | ||||
| 500 | Optional | 16 | 2 | 400 | 465 |
| 3 | 638 | ||||
| 4 | 811 | ||||
| 5 | 983 | ||||
| 6 | 1156 | ||||
| 600 | Optional | 20 | 2 | 500 | 526 |
| 3 | 730 | ||||
| 4 | 933 | ||||
| 5 | 1137 | ||||
| 6 | 1340 | ||||
| 800 | Optional | 20 | 2 | 500 | 671 |
| 3 | 948 | ||||
| 4 | 1223 | ||||
| 5 | 1499 | ||||
| 6 | 1775 | ||||
| 1000 | Optional | 25 | 2 | 600 | 856 |
| 3 | 1225 | ||||
| 4 | 1592 | ||||
| 5 | 1961 | ||||
| 6 | 2329 | ||||
Features :
(1).Type: Interlocking kelly bar, Friction kelly bar or full-locking kelly bar;
(2).Brand and Model of the Drill Rig
(3).Max. Torque: as required (range of 10-350kN.m).
FAQ
1.What kind of kelly bar can we provide?
Ans.: We can provide kelly bars for almost all the brand rotary drilling rig,pls provide us with details of kelly bar, such as drilling rig brand, pictures of your old kelly bar,the length and outer diameter, friction or interlocking, if possible, pls give us the kelly bar sketch, and sketch of drive tube and flange.
2.What is the advantages of our kelly bar?
Ans.:We use super quality seamless steel pipe material, which makes the kelly bar more durable, and our kelly bar with competitive
price,no matter you are dealers or end user,you will get the biggest profit.
