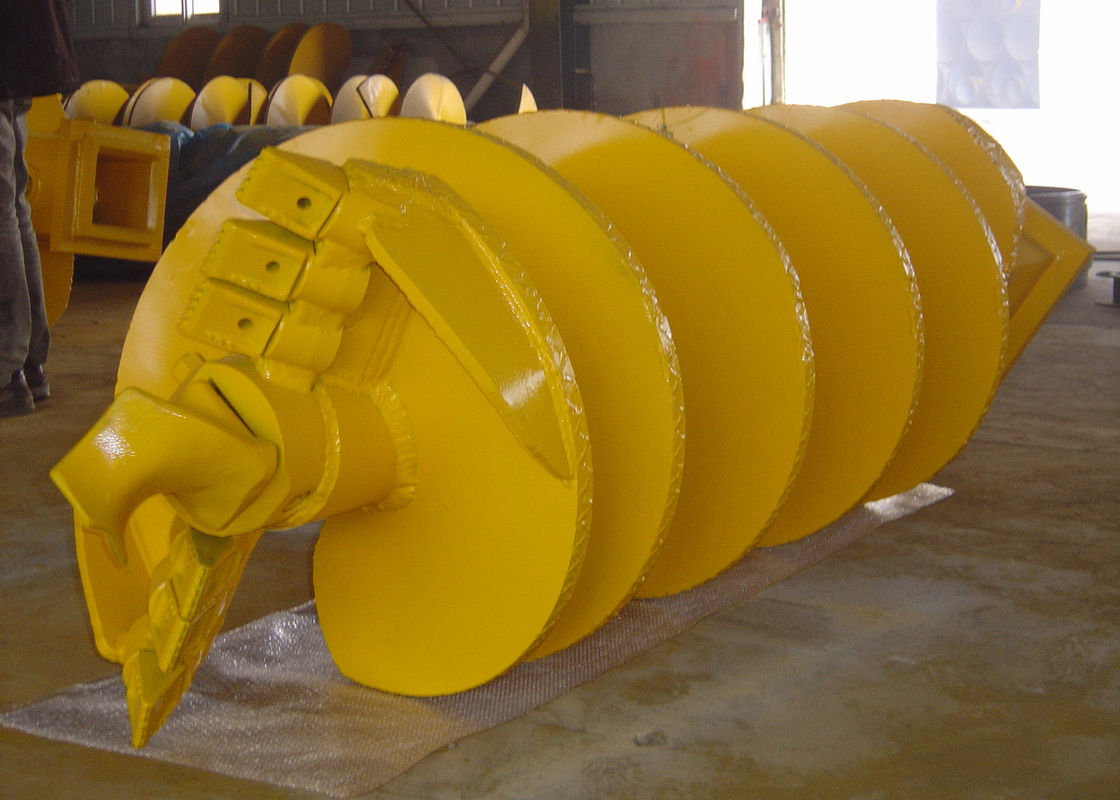

900mm Diameter 600mm Flight Pitch Auger Drill Bit



Spiral drill bits, spiral blades, bullet alloy picks for rotary drilling rigs.





the beginning is a double-head flat head, the screw material is high-strength manganese steel, the single screw connection is smooth and stable, alloy bucket teeth, and wear-resistant fish tail center point. The large thickness center tube can withstand greater torque. Various specifications of products can be customized according to the parameters provided by customers.




Product parameters



Double-cut, single flight clay auger
OD	Height	Tool box size	Flight pitch	Flight thickness	Flight thickness	Central shaft OD	Weight
D1(mm)	H2 (mm)		P1/P2 (mm)	δ1(mm)	δ2(mm)	D2 (mm)	Kg
500			400/550	30	30	￠180*25	643
600	1350	Optional	400/550	30	30	￠180*25	728
700			500/600	30	30	￠219*25	850
800			500/600	30	30	￠219*25	942
900			500/600	30	30	￠219*25	1053
1000			500/600	30	30	￠219*25	1163
1100			500/600	30	30	￠219*25	1300
1200			600/700	30	30	￠219*25	1356
1300			600/700	30	30	￠219*25	1500
1400			600/700	30	30	￠219*25	1662
1500			700/900	30	30	￠219*25	1665
1600			700/900	30	30	￠219*25	1812
1700			700/900	30	30	￠219*25	1963
1800			900	30	30	￠219*25	2000
1900			900	30	30	￠219*25	2171
2000			900	30	30	￠219*25	2346
2100			900	30	30	￠219*25	2523
2200			900	30	30	￠219*25	2700
2300			900	30	30	￠219*25	2889
2400			900	30	30	￠219*25	3100
2500			900	30	30	￠219*25	3287







Used in



suitable for gravel soil layer, soil layer



FAQ



Q: What is the product range of Jinyiyuan Machinery?

A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.





Q: How about the after-sales service of Jinyiyuan Machinery?

A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.





Q: Can I visit the factory?

A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.





Q: What is the delivery time?

A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
