Product Details:
|
| Place Of Origin:: | Tianjin, China | Material:: | Q345B |
|---|---|---|---|
| Model:: | Cleaning Drill | Kelly Box:: | 130 * 130, 150 * 150, 200 * 200, 250 * 250 |
| Drilling Diameter:: | 600-3000mm Or As Required | Color:: | According To Customer Requirements |
| Application:: | Rotary Drilling Rig Core Barrel | Types Of Mining Tools:: | Deep Foundation |
| After-sales Service:: | Online Support, Video Technical Support | Guarantee:: | 1 Year |
| High Light: | diameter 600 mm clean out auger,length 1200mm clean out auger,silt clean out auger |
||

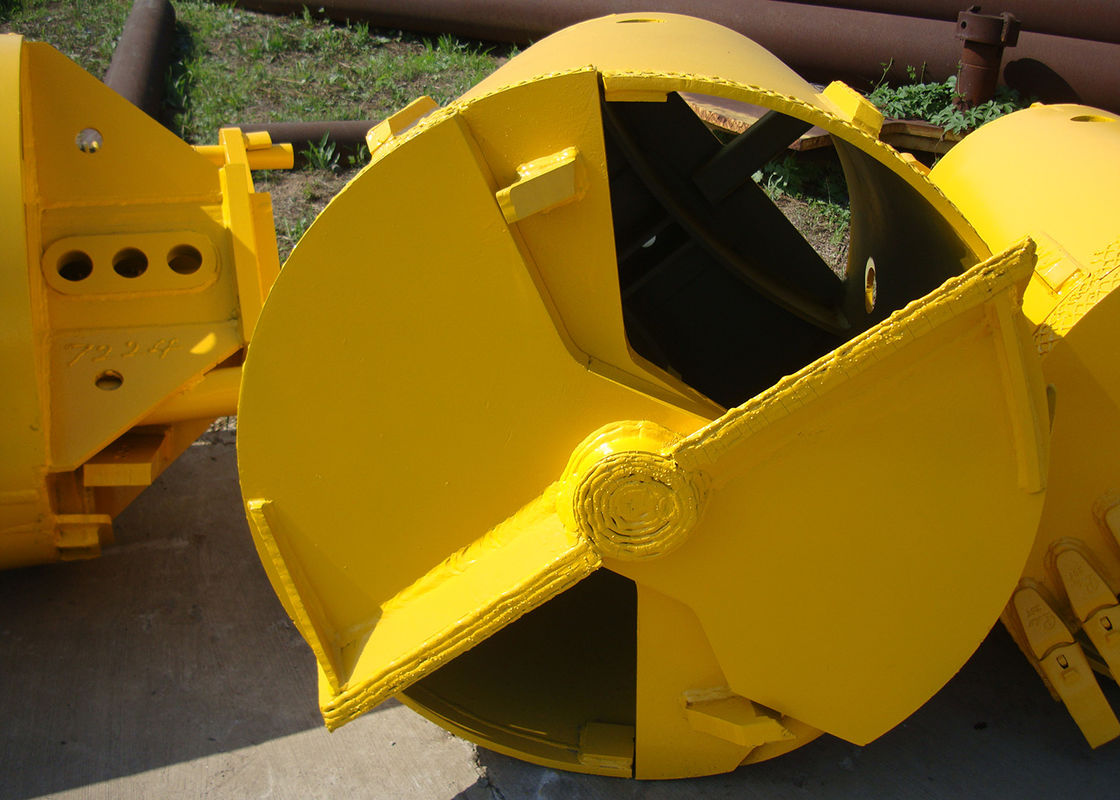

New Design Drilling Rig Bucket Of Rotary Drilling Rig
Introduction
1.Option half-automatic or manul mechanic bottom open system. Built-in ventilation pipe;
2.Cast pilot with rock drilling bits , arc guide plate teeth arrangement, double unlocking system;
3.Staggered arrangement of rock drilling bits;
4.Applicable layers: gravel , pebble , highly or medium weathered rock
Feature:
| Place of Origin: | Tianjin, China | Color: | according to customer requirements |
| Model: | Cleaning Drill | Application: | silt, gravel, clay and highly decomposed rock |
| Material: | Q345B | Types of mining tools: | deep foundation |
| Kelly box: | 130 * 130, 150 * 150, 200 * 200, 250 * 250 | After-sales service: | online support, video technical support |
| Drilling diameter: | 600-3000mm or as required | Guarantee: | 1 year |
Application
1. Very dense sand and gravel, weak rock and up to coarse gravel.
2. Double cut rock bucket is recommended in uncased bores or for bigger diameters and for secant pile walls.
Features
1. Cylindrical barrel or conical barrel(optional).
2. Throughout ventilation hole.
3. Hard facing strips for wear protection. Sturdy and wearable rock pilot for accurate positioning.
4. Kelly box 130, 150, 200mm(optional).
Rock Drilling Buckets
Applicable layers: dense sand, gravel and medium hard rocks, etc..
Single cut buckets are recommended up to coarse gravel.
Double cut buckets are recommended for secant piles and uncased boreholes construction.
Drilling Diameter Range: 600~2500mm
Barrel Length: 800~1500mm
FAQ
1.What kind of drilling tools can we provide?
Ans.: We can provide drilling tools for almost all the brand rotary drilling rig, In addition to the above model specifications,
our company can produce special specification products to customer requirements.
2.What is the advantages of our products?
Ans.: We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive
price. No matter you are dealers or end user, you will get the biggest profit.
3. What is the lead time?
Ans.: Usually the lead time is 7-10 days after receipt of your payment.
4.What payment terms do we accept?
Ans.: We accept T/T in advance or L/C at sight.
