Product Details:
|
| Features: | Long Service Life | Product Name:: | Drilling Core Barrel |
|---|---|---|---|
| Origin: | Hebei China | Applicable Industries:: | Construction Project |
| Packaging: | Shockproof Foam, Greased On The Switch | Colour: | Customized |
| Payment Terms: | TT | Abrasion Resistance: | Excellent |
| High Light: | 200mm roller bit core barrel,roller bit core barrel piling tools,roller bit 200mm core barrel |
||

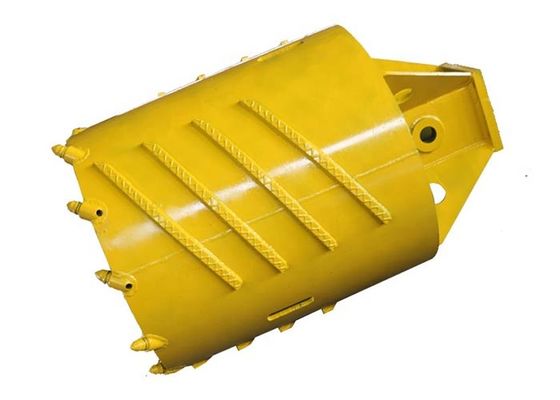

Drill bucket core barrel for drilling and piling tools, with rock drill bits, used in rock formations
Introduction:
The drill barrel is mainly used for drilling water-bearing sandy soil, silt, clay, argillaceous clay, gravel, pebbles and weathered soft layers. According to the bucket diameter, drilling rig type and soil conditions, the bucket can be designed into cylindrical and conical shapes. The opening and closing device can be operated manually, mechanically or mixedly. The welding angle of the bucket teeth can be designed according to the forming conditions.
Featurs:
The drill bit is made of high-strength manganese steel with high hardness and wear resistance. The rotary pick is a large-size alloy pick. Can be replaced. The tooth arrangement angle is divided into external teeth, middle teeth and internal teeth. The drilling speed is fast, equipped with various specifications of picks. High-strength wear-resistant welding wire is welded on the wear-resistant strip to increase the service life of the drill bit. We can manufacture various drill bits according to the parameters provided by customers.
parameter:
| 1.Rock core drill | |||
| specification | Barrel height(mm) | Number of teeth | weight (kg) |
| φ600 | 1200 | 6 | 530 |
| φ800 | 1200 | 9 | 719 |
| φ1000 | 1200 | 12 | 906 |
| φ1200 | 1200 | 15 | 1112 |
| φ1500 | 1200 | 21 | 1460 |
| φ1800 | 1200 | 24 | 2105 |
| φ2000 | 1200 | 27 | 2459 |
| φ2200 | 1200 | 30 | 2757 |
| φ2500 | 1200 | 36 | 3216 |
| Square head 200mm |
Used in:
These drilling buckets are suitable for drilling in clay, silt and loose to medium density sand and gravel.
FAQ:
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
