Product Details:
|
| Features: | Fast Speed, High Efficiency | Name: | Rock Drilling Bucket |
|---|---|---|---|
| Barrel Height(mm): | 1200 | Barrel Thickness (mm): | 16 |
| Thickness Of Bottom Plate: | 40 | Cutting Plate Thickness: | 50 |
| Number Of Teeth: | 11 | Weight(kg): | 850 |
| High Light: | 1000mm rock drilling bucket,20 teeth rock drilling bucket,double bottom double opening drill bucket |
||

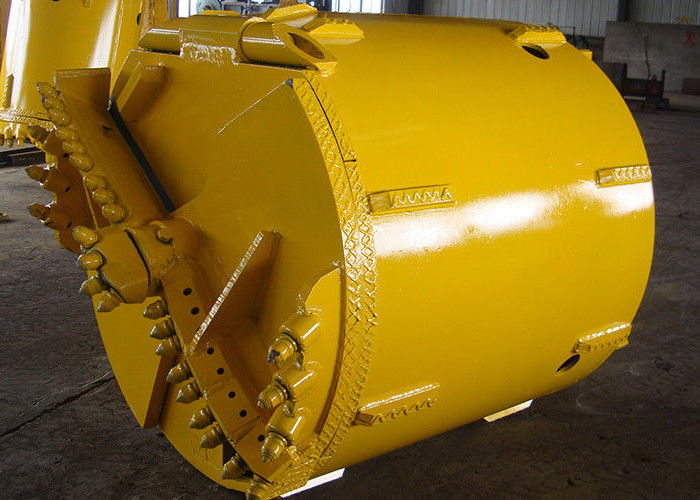

Double Bottom And Double Opening Rock Bucket
Introduction
It is suitable for drilling in rock layers or harder pebble layers, and the cutting teeth are carbide picks. The vertebral body design is conducive to exhaust and better drilling.
Rotary drilling rig for drilling bit, soil soft rock drilling, cylinder high strength manganese steel, alloy pick.
Features
Double bottom double opening cutting disc. The cylinder is a cone, which is good for exhaust, drilling and lifting. It is easy to pour into the soil, and the manufacturing material is high-strength manganese steel. The outer diameter of the drill bit is welded with high-strength wear-resistant welding wire to extend the service life. The replaceable alloy pick angles are arranged in a staggered arrangement, which is convenient for drilling, fast and efficient. The opening and closing mechanism can be operated manually and mechanically. Movable central area. The high frequency quenching of the angle shaft and the central shaft has strong wear resistance and long service life. Various specifications of drill bits can be customized according to the parameters provided by customers.
Product parameters
| 1.Double bottom double open rock drill bucket(straight barrel) | ||||||
| Specification | Barrel height(mm) | Barrel thickness (mm) | Thickness of bottom plate | Cutting plate thickness | Number of teeth | weight(kg) |
| φ600 | 1200 | 16 | 40 | 50 | 11 | 850 |
| φ800 | 1200 | 16 | 40 | 50 | 14 | 1126 |
| φ1000 | 1200 | 16 | 40 | 50 | 20 | 1350 |
| φ1200 | 1200 | 16 | 40 | 50 | 26 | 1740 |
| φ1500 | 1200 | 16 | 40 | 50 | 28 | 2251 |
| φ1800 | 1200 | 16 | 50 | 50 | 32 | 3042 |
| φ2000 | 800 | 20 | 50 | 50 | 36 | 3850 |
| φ2200 | 800 | 20 | 50 | 50 | 38 | 4670 |
| φ2500 | 800 | 20 | 40 Box type | 40 Box type | 40 | 6060 |
| Connect square head 200mm |
Used in
It is suitable for drilling in rock layer or hard pebble layer.
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
