Product Details:
|
| OD D1（mm）: | 1000 | Height: | 1350 |
|---|---|---|---|
| Tool Box Size: | Optional | Flight Thickness (kg): | 500/600 |
| Flight Thickness （mm）: | 30 | Central Shaft OD (mm): | ￠219*25 |
| Teeth Quantity (excludes Pilot): | 12 | Weight: | 1187 |
| High Light: | 800mm Diameter Drilling Auger,1350mm High Drilling Auger,1350mm High rock auger bit |
||

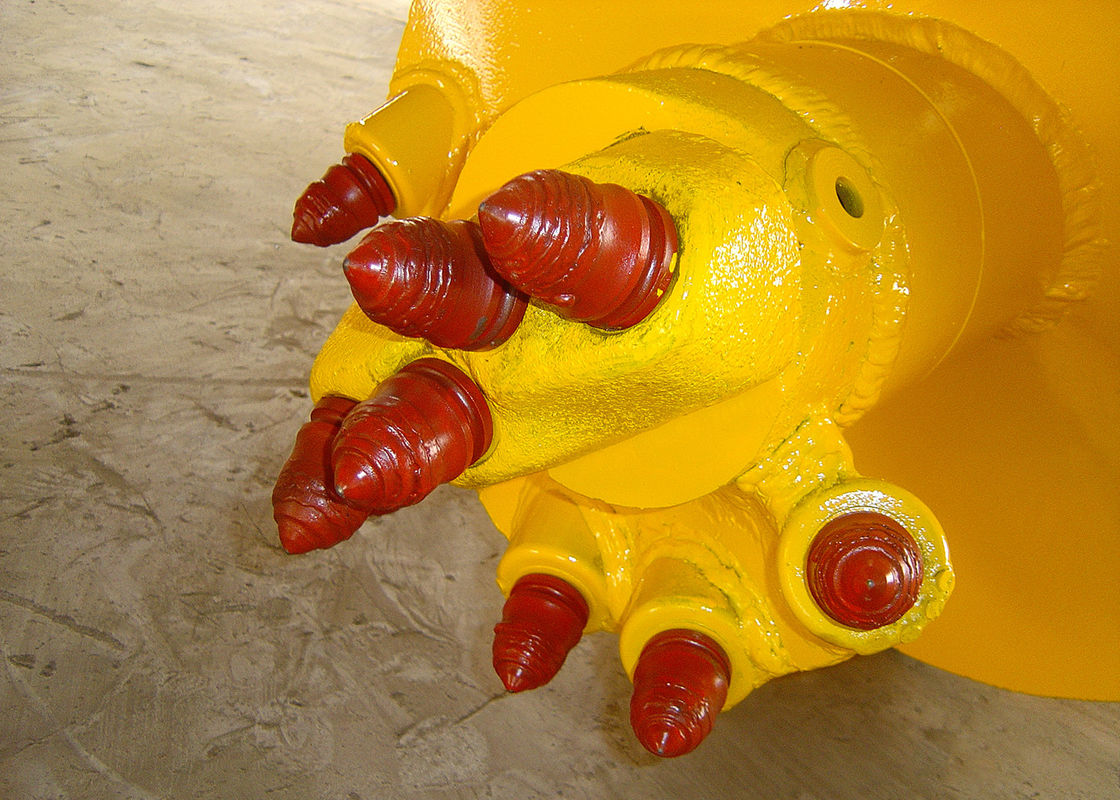

1350mm Height Double Cut Single Flight Rock Drilling Auger
Introduction:
Drilling Bucket:Double bottom double cut soil bucket &rock bucket
Specification:φ600-φ2500mm
According to different geological conditions of construction, different drill teeth need to be selected for construction. The
Roller bucket is suitable for super hard base rock formation, the loss is small; the Drilling bucket with bullet is suitable for
the middle weathered rock layer and the bedrock layer with high working efficiency.
Product parameters
| Double-cut, single flight, straight rock auger with pilot | ||||||||
| OD | Height | Tool box size | Flight pitch | Flight thickness | Flight thickness | Teeth quantity (excludes pilot) | Central shaft OD | Weight |
| D1(mm) | H2 (mm) | P1/P2 (mm) | δ1(mm) | δ2(mm) | pc | D2 (mm) | Kg | |
| 500 | 400/550 | 30 | 30 | 4 | ￠180*25 | 640 | ||
| 600 | 1350 | Optional | 400/550 | 30 | 30 | 4 | ￠180*25 | 717 |
| 700 | 500/600 | 30 | 30 | 6 | ￠219*25 | 843 | ||
| 800 | 500/600 | 30 | 30 | 8 | ￠219*25 | 946 | ||
| 900 | 500/600 | 30 | 30 | 10 | ￠219*25 | 1077 | ||
| 1000 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1187 | ||
| 1100 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1315 | ||
| 1200 | 600/700 | 30 | 30 | 14 | ￠219*25 | 1370 | ||
| 1300 | 600/700 | 30 | 30 | 16 | ￠219*25 | 1505 | ||
| 1400 | 600/700 | 30 | 30 | 18 | ￠219*25 | 1660 | ||
| 1500 | 700/900 | 30 | 30 | 18 | ￠219*25 | 1659 | ||
| 1600 | 700/900 | 30 | 30 | 20 | ￠219*25 | 1810 | ||
| 1700 | 700/900 | 30 | 30 | 22 | ￠219*25 | 1979 | ||
| 1800 | 900 | 30 | 30 | 24 | ￠219*25 | 2020 | ||
| 1900 | 900 | 30 | 30 | 26 | ￠219*25 | 2188 | ||
| 2000 | 900 | 30 | 30 | 26 | ￠219*25 | 2351 | ||
| 2100 | 900 | 30 | 30 | 28 | ￠219*25 | 2524 | ||
| 2200 | 900 | 30 | 30 | 30 | ￠219*25 | 2700 | ||
| 2300 | 900 | 30 | 30 | 32 | ￠219*25 | 2900 | ||
| 2400 | 900 | 30 | 30 | 34 | ￠219*25 | 3100 | ||
| 2500 | 900 | 30 | 30 | 34 | ￠219*25 | 3282 | ||
1. high quality and competitive price
2.long time use
3. best service
4. drilling auger for drilling rigs/ machinery parts
