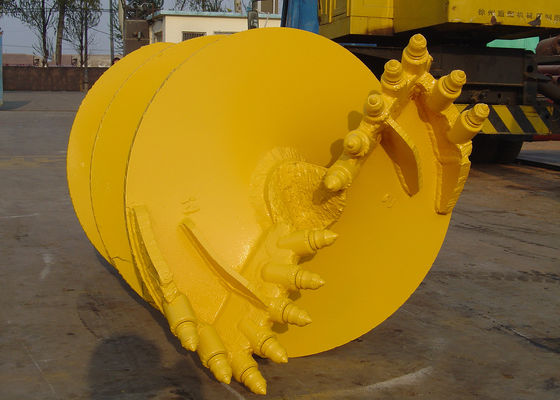

12pcs Teeth Rock Auger Bit

12pcs Teeth Rock Auger Bit
12pcs Teeth Rock Auger Bit

Large Image :  12pcs Teeth Rock Auger Bit

Product Details:
Place of Origin: Tianjin,China
Brand Name: JYY mechanical
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Shockproof foam, greased on the switch
Delivery Time: From 3 working days, depending on the order quantity and inventory
Payment Terms: T/T
Supply Ability: 6000 drill bits per year
Contact Now

12pcs Teeth Rock Auger Bit

Description
OD D1（mm）: 1000 Height: 1350
Tool Box Size: Optional Flight Thickness (kg): 500/600
Flight Thickness （mm）: 30 Central Shaft OD (mm): ￠219*25
Teeth Quantity (excludes Pilot): 12 Weight: 1187
Highlight:

500mm Flight Rock Auger Bit

,

12pcs Teeth Rock Auger Bit

,

12pcs Teeth drilling auger

Digging Different Holes Diameters Earth Augers, Rock Auger Ground Drilling Machines, Drilling Auger



Introduction:



HM Machinery Driling Augers have been designed for drilling in dry soil and in rock.
Variours teeth configurations are available for different soil conditions
The geometry of the teeth arrangement is optimized for reaching excellent cutting performance.



Product parameters



Double-cut, single flight, straight rock auger with pilot
OD Height Tool box size Flight pitch Flight thickness Flight thickness Teeth quantity (excludes pilot) Central shaft OD Weight
D1(mm) H2 (mm)   P1/P2 (mm) δ1(mm) δ2(mm) pc D2 (mm) Kg
500     400/550 30 30 4 ￠180*25 640
600 1350 Optional 400/550 30 30 4 ￠180*25 717
700 500/600 30 30 6 ￠219*25 843
800 500/600 30 30 8 ￠219*25 946
900 500/600 30 30 10 ￠219*25 1077
1000 500/600 30 30 12 ￠219*25 1187
1100 500/600 30 30 12 ￠219*25 1315
1200 600/700 30 30 14 ￠219*25 1370
1300 600/700 30 30 16 ￠219*25 1505
1400 600/700 30 30 18 ￠219*25 1660
1500 700/900 30 30 18 ￠219*25 1659
1600 700/900 30 30 20 ￠219*25 1810
1700 700/900 30 30 22 ￠219*25 1979
1800 900 30 30 24 ￠219*25 2020
1900 900 30 30 26 ￠219*25 2188
2000 900 30 30 26 ￠219*25 2351
2100 900 30 30 28 ￠219*25 2524
2200 900 30 30 30 ￠219*25 2700
2300 900 30 30 32 ￠219*25 2900
2400 900 30 30 34 ￠219*25 3100
2500 900 30 30 34 ￠219*25 3282



Double-cut, single flight clay auger
OD Height Tool box size Flight pitch Flight thickness Flight thickness Central shaft OD Weight
D1(mm) H2 (mm)   P1/P2 (mm) δ1(mm) δ2(mm) D2 (mm) Kg
500     400/550 30 30 ￠180*25 643
600 1350 Optional 400/550 30 30 ￠180*25 728
700 500/600 30 30 ￠219*25 850
800 500/600 30 30 ￠219*25 942
900 500/600 30 30 ￠219*25 1053
1000 500/600 30 30 ￠219*25 1163
1100 500/600 30 30 ￠219*25 1300
1200 600/700 30 30 ￠219*25 1356
1300 600/700 30 30 ￠219*25 1500
1400 600/700 30 30 ￠219*25 1662
1500 700/900 30 30 ￠219*25 1665
1600 700/900 30 30 ￠219*25 1812
1700 700/900 30 30 ￠219*25 1963
1800 900 30 30 ￠219*25 2000
1900 900 30 30 ￠219*25 2171
2000 900 30 30 ￠219*25 2346
2100 900 30 30 ￠219*25 2523
2200 900 30 30 ￠219*25 2700
2300 900 30 30 ￠219*25 2889
2400 900 30 30 ￠219*25 3100
2500 900 30 30 ￠219*25 3287



Double-cut, single flight, straight rock auger with pilot
OD Height Tool box size Flight pitch Flight thickness Flight thickness Teeth quantity (excludes pilot) Central shaft OD Weight
D1(mm) H2 (mm)   P1/P2 (mm) δ1(mm) δ2(mm) pc D2 (mm) Kg
500     400/550 30 30 4 ￠180*25 640
600 1350   400/550 30 30 4 ￠180*25 717
700 500/600 30 30 6 ￠219*25 843
800 500/600 30 30 8 ￠219*25 946
900 500/600 30 30 10 ￠219*25 1077
1000 500/600 30 30 12 ￠219*25 1187
1100 500/600 30 30 12 ￠219*25 1315
1200 600/700 30 30 14 ￠219*25 1370
1300 600/700 30 30 16 ￠219*25 1505
1400 600/700 30 30 18 ￠219*25 1660
1500 700/900 30 30 18 ￠219*25 1659
1600 700/900 30 30 20 ￠219*25 1810
1700 700/900 30 30 22 ￠219*25 1979
1800 900 30 30 24 ￠219*25 2020
1900 900 30 30 26 ￠219*25 2188
2000 900 30 30 26 ￠219*25 2351
2100 900 30 30 28 ￠219*25 2524
2200 900 30 30 30 ￠219*25 2700
2300 900 30 30 32 ￠219*25 2900
2400 900 30 30 34 ￠219*25 3100
2500 900 30 30 34 ￠219*25 3282



Single-cut, single flight, straight rock auger
OD Height Tool box size Flight pitch Flight thickness Flight thickness Teeth quantity (excludes pilot) Central shaft OD Weight
D1(mm) H2 (mm)   P1/P2 (mm) δ1(mm) δ2(mm) pc D2 (mm) Kg
500     500 30 30 2 ￠180*25 588
600 1250 Optional 500 30 30 2 ￠180*25 650
700 500 30 30 3 ￠219*25 742
800 500 30 30 4 ￠219*25 825
900 500 30 30 5 ￠219*25 944
1000 500 30 30 6 ￠219*25 1034
1100 500 30 30 6 ￠219*25 1159
1200 700 30 30 7 ￠219*25 1110
1300 700 30 30 8 ￠219*25 1210
1400 700 30 30 9 ￠219*25 1310
1500 700 30 30 9 ￠219*25 1420
1600 700 30 30 10 ￠219*25 1538
1700 700 30 30 11 ￠219*25 1667
1800 900 30 30 12 ￠219*25 1575
1900 900 30 30 13 ￠219*25 1685
2000 900 30 30 13 ￠219*25 1800
2100 900 30 30 14 ￠219*25 1920
2200 900 30 30 15 ￠219*25 2050
2300 900 30 30 16 ￠219*25 2176
2400 900 30 30 17 ￠219*25 2300
2500 900 30 30 17 ￠219*25 2459



Double-cut, single flight, progressive rock auger
OD Height Tool box size Flight pitch Flight thickness Flight thickness Teeth quantity (excludes pilot) Central shaft OD Weight
D1(mm) H2 (mm)   P1/P2 (mm) δ1(mm) δ2(mm) pc D2 (mm) Kg
500     400/550 30 30 18 ￠180*25 670
600 1350 Optional 400/550 30 30 20 ￠180*25 742
700 500/600 30 30 21 ￠219*25 871
800 500/600 30 30 22 ￠219*25 950
900 500/600 30 30 23 ￠219*25 1050
1000 500/600 30 30 24 ￠219*25 1147
1100 500/600 30 30 25 ￠219*25 1267
1200 600/700 30 30 26 ￠219*25 1290
1300 600/700 30 30 28 ￠219*25 1400
1400 600/700 30 30 30 ￠219*25 1530
1500 700/900 30 30 32 ￠219*25 1520
1600 700/900 30 30 33 ￠219*25 1620
1700 700/900 30 30 34 ￠219*25 1730
1800 900 30 30 36 ￠219*25 1787
1900 900 30 30 37 ￠219*25 1863
2000 900 30 30 38 ￠219*25 2000
2100 900 30 30 39 ￠219*25 2127
2200 900 30 30 40 ￠219*25 2259
2300 900 30 30 41 ￠219*25 2400
2400 900 30 30 42 ￠219*25 2590
2500 900 30 30 44 ￠219*25 2700



Single-cut, single flight, progressive rock auger
OD Height Tool box size Flight pitch Flight thickness Flight thickness Teeth quantity (excludes pilot) Weight Central shaft OD
D1(mm) H2 (mm)   P1/P2 (mm) δ1(mm) δ2(mm) pc Kg D2 (mm)
500     500 30 30 10 595 ￠180*25
600 1250 Optional 500 30 30 12 640 ￠180*25
700 500 30 30 13 745 ￠219*25
800 500 30 30 13 827 ￠219*25
900 500 30 30 14 904 ￠219*25
1000 500 30 30 14 980 ￠219*25
1100 500 30 30 15 1092 ￠219*25
1200 700 30 30 15 1003 ￠219*25
1300 700 30 30 15 1073 ￠219*25
1400 700 30 30 16 1150 ￠219*25
1500 700 30 30 16 1233 ￠219*25
1600 700 30 30 18 1320 ￠219*25
1700 700 30 30 19 1420 ￠219*25
1800 900 30 30 20 1300 ￠219*25
1900 900 30 30 21 1350 ￠219*25
2000 900 30 30 21 1435 ￠219*25
2100 900 30 30 22 1510 ￠219*25
2200 900 30 30 22 1600 ￠219*25
2300 900 30 30 23 1681 ￠219*25
2400 900 30 30 23 1775 ￠219*25
2500 900 30 30 24 1860 ￠219*25



Characteristics :


Design as straight type, better for carry soil ;
Double cutter bearing uniform force, can avoid inclined hole ;
Double spiral easy to carry soil, but meet cohensive soil, single spiral is easy to dump spoil;
Applicable layers: clay, high-weathered layer, gravel etc.
