Product Details:
|
| OD D1（mm）: | 500 | Flight Thickness （mm）: | 30 |
|---|---|---|---|
| Central Shaft OD (mm): | ￠180*25 | Teeth Quantity (excludes Pilot): | 4 |
| Flight Thickness (kg): | 640 | Height: | 1350 |
| High Light: | 500mm Diameter Rock Drilling Auger,4pcs Teeth Rock Drilling Auger,500mm Diameter rock auger |
||

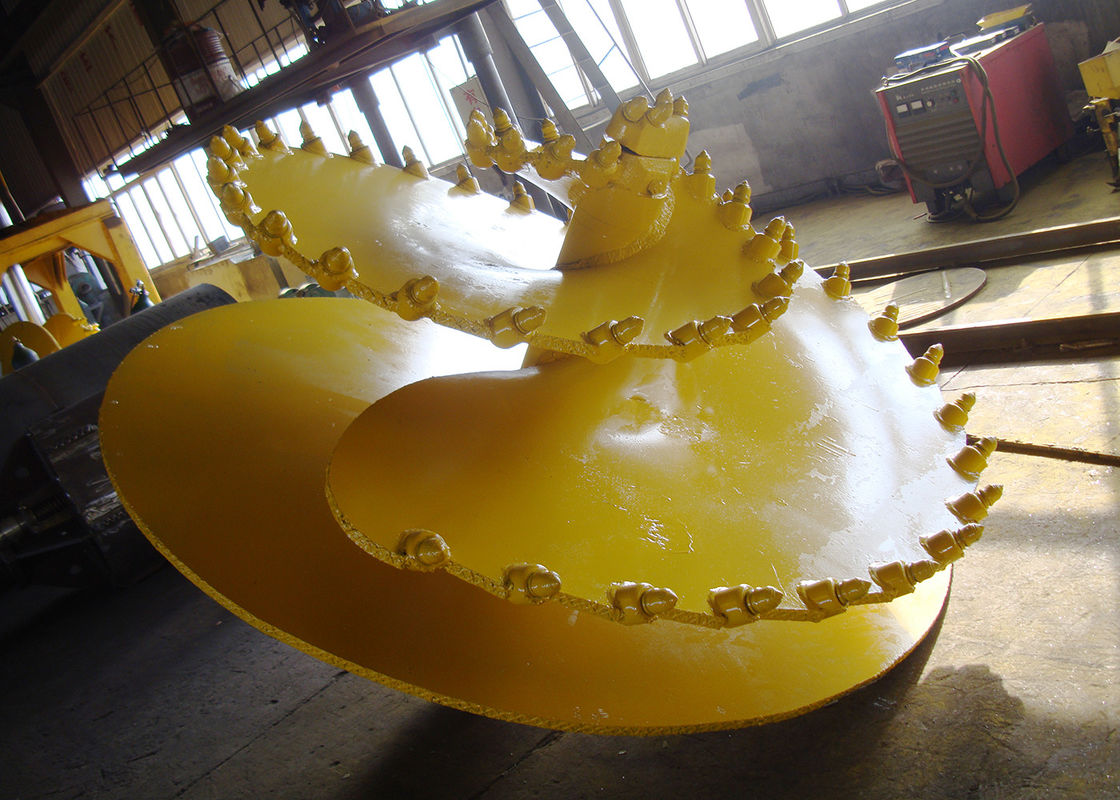

Digging Different Holes Diameters Earth Augers, Rock Auger Ground Drilling Machines, Drilling Auger
Introduction:
HM Machinery Driling Augers have been designed for drilling in dry soil and in rock.
Variours teeth configurations are available for different soil conditions
The geometry of the teeth arrangement is optimized for reaching excellent cutting performance.
Product parameters
| Double-cut, single flight, straight rock auger with pilot | ||||||||
| OD | Height | Tool box size | Flight pitch | Flight thickness | Flight thickness | Teeth quantity (excludes pilot) | Central shaft OD | Weight |
| D1(mm) | H2 (mm) | P1/P2 (mm) | δ1(mm) | δ2(mm) | pc | D2 (mm) | Kg | |
| 500 | 400/550 | 30 | 30 | 4 | ￠180*25 | 640 | ||
| 600 | 1350 | Optional | 400/550 | 30 | 30 | 4 | ￠180*25 | 717 |
| 700 | 500/600 | 30 | 30 | 6 | ￠219*25 | 843 | ||
| 800 | 500/600 | 30 | 30 | 8 | ￠219*25 | 946 | ||
| 900 | 500/600 | 30 | 30 | 10 | ￠219*25 | 1077 | ||
| 1000 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1187 | ||
| 1100 | 500/600 | 30 | 30 | 12 | ￠219*25 | 1315 | ||
| 1200 | 600/700 | 30 | 30 | 14 | ￠219*25 | 1370 | ||
| 1300 | 600/700 | 30 | 30 | 16 | ￠219*25 | 1505 | ||
| 1400 | 600/700 | 30 | 30 | 18 | ￠219*25 | 1660 | ||
| 1500 | 700/900 | 30 | 30 | 18 | ￠219*25 | 1659 | ||
| 1600 | 700/900 | 30 | 30 | 20 | ￠219*25 | 1810 | ||
| 1700 | 700/900 | 30 | 30 | 22 | ￠219*25 | 1979 | ||
| 1800 | 900 | 30 | 30 | 24 | ￠219*25 | 2020 | ||
| 1900 | 900 | 30 | 30 | 26 | ￠219*25 | 2188 | ||
| 2000 | 900 | 30 | 30 | 26 | ￠219*25 | 2351 | ||
| 2100 | 900 | 30 | 30 | 28 | ￠219*25 | 2524 | ||
| 2200 | 900 | 30 | 30 | 30 | ￠219*25 | 2700 | ||
| 2300 | 900 | 30 | 30 | 32 | ￠219*25 | 2900 | ||
| 2400 | 900 | 30 | 30 | 34 | ￠219*25 | 3100 | ||
| 2500 | 900 | 30 | 30 | 34 | ￠219*25 | 3282 | ||
Design as straight type, better for carry soil ;
Double cutter bearing uniform force, can avoid inclined hole ;
Double spiral easy to carry soil, but meet cohensive soil, single spiral is easy to dump spoil;
Applicable layers: clay, high-weathered layer, gravel etc.
