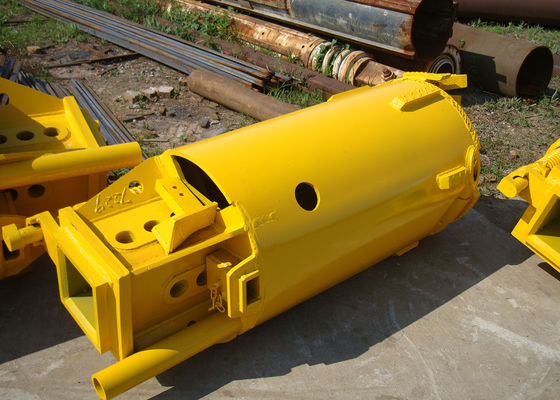

16mm Thick Rock Drilling Bucket

16mm Thick Rock Drilling Bucket
16mm Thick Rock Drilling Bucket

Large Image :  16mm Thick Rock Drilling Bucket

Product Details:
Place of Origin: Tianjin,China
Brand Name: JYY mechanical
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Shockproof foam, greased on the switch
Delivery Time: From 3 working days, depending on the order quantity and inventory
Payment Terms: T/T
Supply Ability: 6000 drill bits per year

16mm Thick Rock Drilling Bucket

Description
Place Of Origin:: Tianjin, China Color:: Customer Specified
MOQ:: 1 Piece OEM:: Available
Certification:: ISO Standard Application:: Rotary Drilling Rig
Packing:: Wooden Pallet Delivery Time:: 5-15 Days
Payment:: Wire Transfer Material:: Q345B
Applicable Industries:: Foundation Engineering, Pile Foundation Engineering Of Bridges, Subways, Civil Buildings, Etc. Guarantee:: 1 Year
Highlight:

16mm Thick Rock Drilling Bucket

,

600mm Dia Rock Drilling Bucket

,

600mm Dia drilling bucket auger

Double-Cut Rock Drilling Bucket/Foundation Drilling Bucket



Description:



1 - Two-petal soil drilling buckets are used to drilling soil,hard soil and argillite formation.

2 - The bucket can be designed in cylindrical type and conical type depend on bucket diameter,type of drill rig and formation to be drilled.



Product parameters



Serial number Specification Bucket height (mm) Barrel thickness (mm) Thickness of bottom plate Cutting plate thickness Number of teeth Weight (kg)
1 φ600 1200 16 40 50 11 870
2 φ800 1200 16 40 50 14 1151
3 φ1000 1200 16 40 50 20 1382
4 φ1200 1200 16 40 50 26 1778
5 φ1500 1200 16 40 50 28 2295
6 φ1800 1200 16 50 50 32 3042
7 φ2000 800 20 50 50 36 3850
8 φ2200 800 20 50 50 38 4670
9 φ2500 800 20 40 box type 40 box type 40 6060

Connection square head 200mm



Applicable​:



Applicable layers: gravel , pebble , highly or medium weathered rock;





FAQ



1.What kind of drilling tools can we provide?

Ans.: We can provide drilling tools for almost all the brand rotary drilling rig, In addition to the above model specifications, our company can produce special specification products to customer requirements.



2.What is the advantages of our products?

Ans.:We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive price.No matter you are dealers or end user,you will get the biggest profit.



3. What warranty do we provide?

Ans.: We provide 6 months warranty time.



4. What is the lead time?

Ans.: Usually the lead time is 7-10 days after receipt of your payment.



5.What payment terms do we accept?

Ans.: We accept T/T in advance or L/C at sight.
