Product Details:
|
| Place Of Origin:: | Tianjin, China | Guarantee:: | 1 Year |
|---|---|---|---|
| Certification:: | ISO Standard | Applicable Industries:: | Foundation Engineering, Pile Foundation Engineering Of Bridges, Subways, Civil Buildings, Etc. |
| Delivery Time:: | 5-15 Days | Application:: | Rotary Drilling Rig |
| Packing:: | Wooden Pallet | MOQ:: | 1 Piece |
| Payment:: | Wire Transfer | Color:: | Customer Specified |
| Material:: | Q345B | OEM:: | Available |
| High Light: | 20mm Rock Drilling Bucket,Height 800mm Rock Drilling Bucket,Height 800mm bucket auger drilling |
||

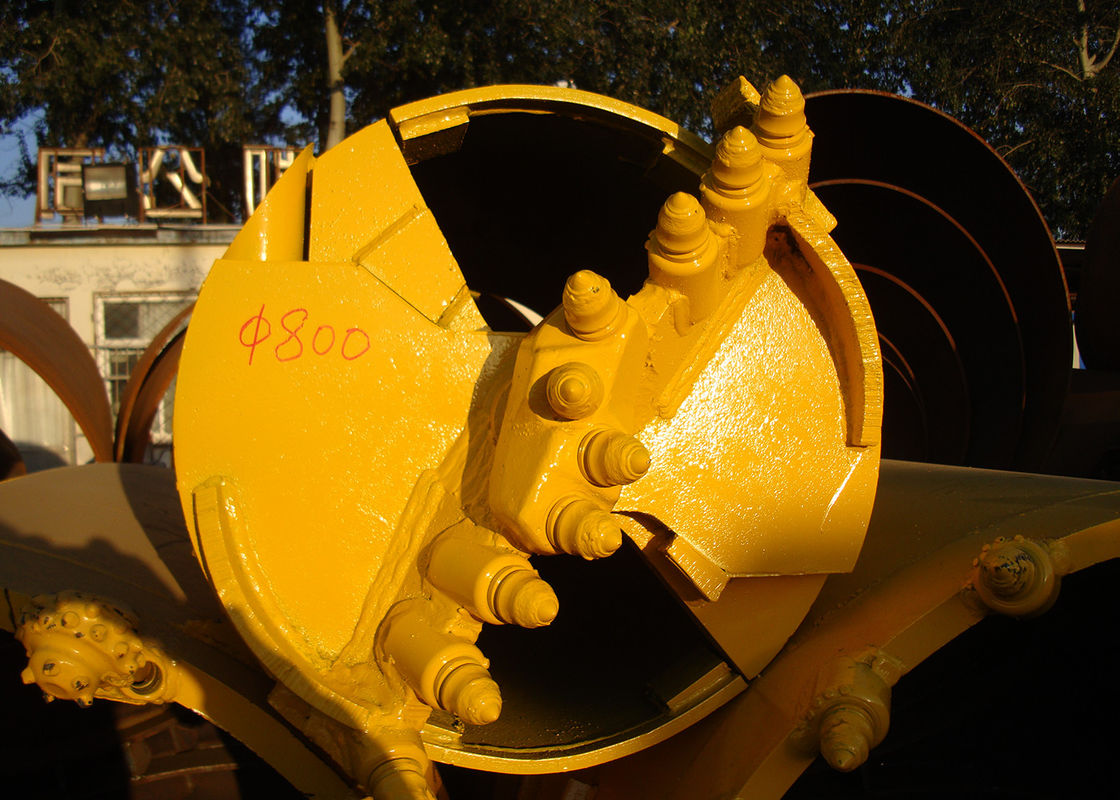

Rotary Drilling Rig Drill Bit Rock Tube Drill Bucket,Bullet Teeth
Introduction
Supply capacity:
180 sets/set per month
Packing and shipping:
package
1. Wrap with plastic film.
2. Use iron brackets, wheels or trays to fix it when necessary.
3. Wooden box with small items.
port
At any port in China
Product parameters
| Serial number | Specification | Bucket height (mm) | Barrel thickness (mm) | Thickness of bottom plate | Cutting plate thickness | Number of teeth | Weight (kg) |
| 1 | φ600 | 1200 | 16 | 40 | 50 | 11 | 870 |
| 2 | φ800 | 1200 | 16 | 40 | 50 | 14 | 1151 |
| 3 | φ1000 | 1200 | 16 | 40 | 50 | 20 | 1382 |
| 4 | φ1200 | 1200 | 16 | 40 | 50 | 26 | 1778 |
| 5 | φ1500 | 1200 | 16 | 40 | 50 | 28 | 2295 |
| 6 | φ1800 | 1200 | 16 | 50 | 50 | 32 | 3042 |
| 7 | φ2000 | 800 | 20 | 50 | 50 | 36 | 3850 |
| 8 | φ2200 | 800 | 20 | 50 | 50 | 38 | 4670 |
| 9 | φ2500 | 800 | 20 | 40 box type | 40 box type | 40 | 6060 |
|
Connection square head 200mm |
|||||||
Use :
Drilling for clay, silt and loose to medium density sand and gravel.
FAQ
Q: What is the product range of Jinyiyuan Machinery?
A: Jinyiyuan Machinery is mainly engaged in the manufacturing and sales of various drill bits and drill pipes, as well as the import and export business of various drilling tools.
Q: How about the after-sales service of Jinyiyuan Machinery?
A: Jinyiyuan Machinery provides quality service after sale. All our products have a warranty period.
Q: Can I visit the factory?
A: We warmly welcome customers to visit our factory at any time. In addition to visiting the factory, we also warmly welcome customers or third parties to arrange pre-delivery inspections.
Q: What is the delivery time?
A: Usually, the delivery time is about 3-7 working days. The specific delivery time will be provided in each quotation.
