Product Details:
|
| Marketing Type:: | Factory | Place Of Origin:: | Tianjing, China |
|---|---|---|---|
| Packing:: | Can Provide Film, Wooden Box, Iron Frame Support | Applicable Industries:: | Basic Engineering Drilling |
| Product Name:: | CFA Long Spiral | Material:: | Q345B |
| Brand Name:: | Jin Yiyuan | Warranty Period:: | One Year |
| After-sales Service Provided:: | 24 Hours After Sale | Specification: | 300mm～1000mm |
| High Light: | 12 Inch Hydraulic Auger Bits,diameter 400mm Hydraulic Auger Bits,12 Inch long auger drill bit |
||
Post Auger Bit Spiral Auger Drill Bit Long Auger Drill Bit
Product Advantage
Auger drill is suitable for all types of excavators, skid steer loader, backhoe loader, crane, telescopic handler.
Description:
Hydraulic earth drill is mainly composed with power head and auger. The power head and auger are fixed together. Auger is composed of screw blade and bit on the end of the auger, there is also teeth on the end of the auger. Simple construction, stronger drill ability, low production cost, high flexibility.
Use:
Widely apply to electric power, forestry, telecommunication
| 1. Parameter | ||||
| Product Name | CFA Continuous Flight Auger | |||
| Material | Q345B | |||
| Technique | Forming, machining, heat treatment, welding | |||

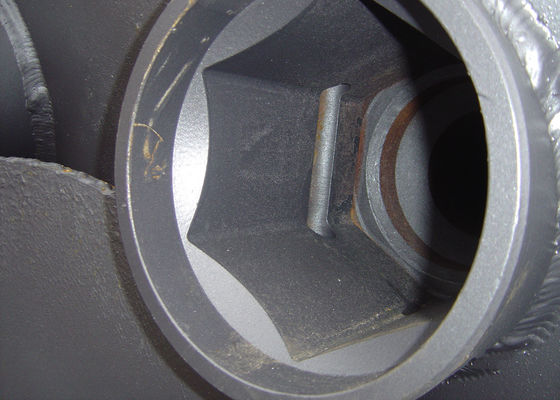

| Coupling | Internal and external hexagonal joint | |||
| Diameter | 300mm～1000mm | |||
| Depth | 18m～21m | |||
| Model | Diameter (mm) | Flight Pitch (mm) | Flight Thickness (mm) | Length (m) |
| CFA300 | 300 | 250 | 16 | 2～6 |
| CFA400 | 400 | 340 | 16 | 2～6 |
| CFA500 | 500 | 400 | 16 | 2～6 |
| CFA600 | 600 | 500 | 20 | 2～6 |
| CFA700 | 700 | 500 | 20 | 2～6 |
| CFA800 | 800 | 500 | 20 | 2～6 |
| CFA900 | 900 | 500 | 20 | 2～6 |
| CFA1000 | 1000 | 500 | 20 | 2～6 |
| Customize: | ||||
| 1. Diameter: 300～1060mm | ||||
| 2. Depth: 16～25m | ||||
| 3. Flight thickness: 16~25mm | ||||
|
4. Coupling: Internal and external hexagonal joint or flange |
||||
