Product Details:
|
| Marketing Type:: | Factory | Place Of Origin:: | Tianjing, China |
|---|---|---|---|
| Brand Name:: | Jin Yiyuan | After-sales Service Provided:: | 24 Hours After Sale |
| Applicable Industries:: | Basic Engineering Drilling | Product Name:: | CFA Long Spiral |
| Packing:: | Can Provide Film, Wooden Box, Iron Frame Support | Warranty Period:: | One Year |
| Specification: | 300mm～1000mm | Material:: | Q345B |
| High Light: | 400mm Flight Pitch Earth Auger,10inch Earth Auger,10inch long auger drill bit |
||

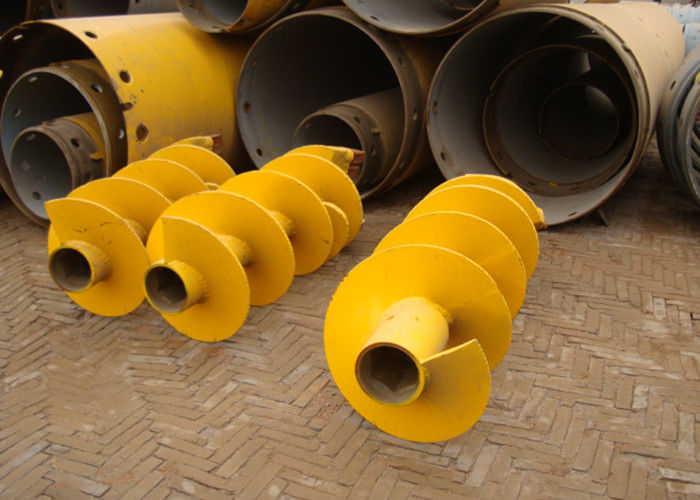

10 Inch Earth Auger Adjustable Auger Bit
Product Description:
The coring barrel is used to cut annular rings in rock, concrete or reinforced concrete. The central core of rock or concrete is usually crushed with a rock drill. The most important advantage of the coring barrel is that it helps to concentrate torque and thrust on the small teeth.
feature:
1. Precise positioning of fishtail pilots.
2. Use hard noodles in flight to prevent wear.
3. Kelly box 130mm, 150mm, 200mm (optional).
| 1. Parameter | ||||
| Product Name | CFA Continuous Flight Auger | |||
| Material | Q345B | |||
| Technique | Forming, machining, heat treatment, welding | |||
| Coupling | Internal and external hexagonal joint | |||
| Diameter | 300mm～1000mm | |||
| Depth | 18m～21m | |||
| Model | Diameter (mm) | Flight Pitch (mm) | Flight Thickness (mm) | Length (m) |
| CFA300 | 300 | 250 | 16 | 2～6 |
| CFA400 | 400 | 340 | 16 | 2～6 |
| CFA500 | 500 | 400 | 16 | 2～6 |
| CFA600 | 600 | 500 | 20 | 2～6 |
| CFA700 | 700 | 500 | 20 | 2～6 |
| CFA800 | 800 | 500 | 20 | 2～6 |
| CFA900 | 900 | 500 | 20 | 2～6 |
| CFA1000 | 1000 | 500 | 20 | 2～6 |
| Customize: | ||||
| 1. Diameter: 300～1060mm | ||||
| 2. Depth: 16～25m | ||||
| 3. Flight thickness: 16~25mm | ||||
4. Coupling: Internal and external hexagonal joint or flange | ||||
FAQ :
Q: Are you a manufacturer?
A: Yes,our factory was established in 2006 .
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers’ design?
A: Sure, we can provide OEM and ODM service.
Q: What’s the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.
Q: How about the package?
A: Our hydraulic breaker wrapped by stretch film, packed by pallet or polywood case.
